Why Choose the Carlo Gavazzi ICB12S30N10PO Inductive Proximity Sensor?

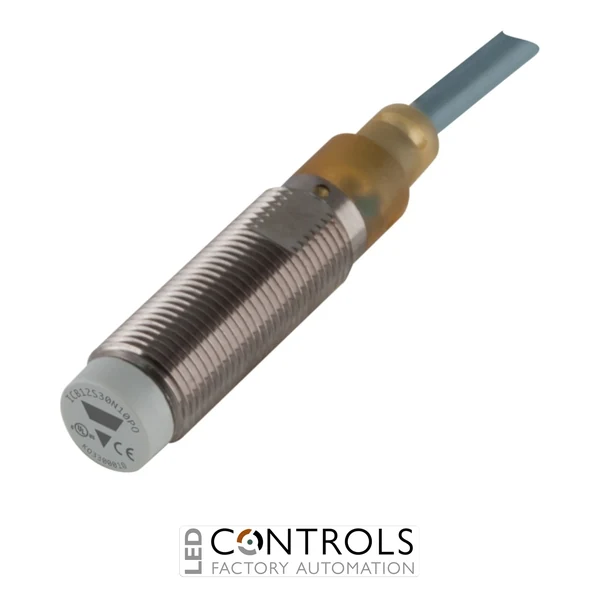

The Carlo Gavazzi ICB12S30N10PO is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-building applications. Part of the Carlo Gavazzi ICB series, this increased-range sensor combines a short cylindrical threaded barrel with a durable nickel-plated brass housing for dependable operation in industrial machinery.
The ICB12S30N10PO provides a rated operating distance of 10 mm and is designed for non-flush mounting. Its PNP normally open (NO), 3-wire DC output provides straightforward integration with compatible PLC inputs, machine controllers and automation systems used for position monitoring, metal component detection, counting and machine sequencing.
Operating from a 10–36 V DC supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 2 kHz. It is supplied with an integral 2 m cable and features a short M12 body measuring approximately 51 mm overall, with IP67 protection for dependable operation in industrial environments.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical sensing wear.
- Increased 10 mm rated sensing distance in a compact M12 sensor format.
- Non-flush mounting supports the increased sensing range.
- PNP normally open output for compatible industrial PLC and control systems.
- Wide 10–36 V DC operating range for industrial automation applications.
- Fast 2 kHz maximum switching frequency for responsive machine sensing.
- Compact M12 short-body construction for space-conscious machine installations.
- Durable nickel-plated brass housing for industrial reliability.
- Integral 2 m cable provides a straightforward wired connection.
- IP67 ingress protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M12 cylindrical threaded short-body design.
- 10 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open (NO), 3-wire DC output.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- 2 kHz maximum switching frequency.
- 2 m integral cable.
- Nickel-plated brass housing.
- Approximately 51 mm overall length.
- M12 × 1 × 30 mm threaded section.
- LED indication for output ON.
- Reverse-polarity, short-circuit and transient protection.
- -25°C to +70°C operating temperature range.
- IP67 ingress protection.
Reliable Increased-Range Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable conductive target enters the detection zone, allowing the solid-state output to change state and provide repeatable position or presence information without the mechanical wear associated with conventional contact switches.
The Carlo Gavazzi ICB12S30N10PO combines a compact M12 short-body format with an increased 10 mm sensing distance, non-flush installation and fast PNP normally open switching. Its integral cable and rugged metal housing make it a practical sensing solution for automated machinery where increased detection range, compact dimensions and reliable repetitive operation are required.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Machine end-position monitoring.
- Conveyor object detection and counting.
- Packaging and production machinery.
- Automated assembly equipment.
- Material handling and transfer systems.
- PLC-controlled factory automation systems.
