Why Choose the Carlo Gavazzi ICB18L50F05POM1 Inductive Proximity Sensor?

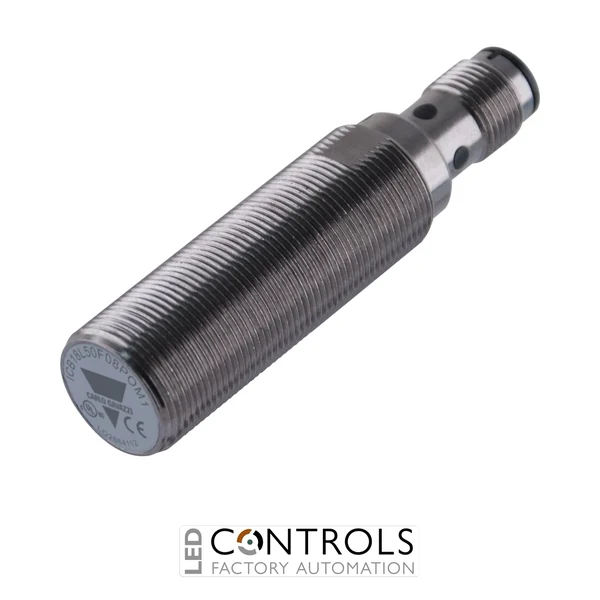

The Carlo Gavazzi ICB18L50F05POM1 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB series, this model combines a long threaded metal housing with dependable solid-state switching and an M12 connector for convenient installation and maintenance.
The ICB18L50F05POM1 provides a 5 mm rated sensing distance and is designed for flush mounting. Its PNP normally open (NO) output and 10–36 V DC supply range make it suitable for integration with PLC inputs, machine controllers and other common industrial automation equipment.
Featuring a nickel-plated brass M18 housing, IP67 ingress protection and a maximum switching frequency of 1.5 kHz, the sensor is engineered for dependable operation in demanding production environments. The M12 plug connection allows compatible sensor cables to be disconnected quickly during installation, servicing or equipment replacement.
Key Advantages
- Reliable M18 inductive proximity sensing for metallic target detection.
- 5 mm rated sensing distance for precise machine and component detection.
- PNP normally open output suitable for compatible industrial control circuits.
- Flush-mountable design supports integration into metal machinery and mounting structures.
- M12 connector simplifies wiring, servicing and sensor replacement.
- Wide 10–36 V DC supply range for industrial automation systems.
- Durable metal construction with IP67 ingress protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M18 cylindrical threaded housing.
- Long-body design with 50 mm threaded section.
- 5 mm rated operating distance.
- Flush mounting configuration.
- PNP normally open (NO) switching output.
- Three-wire DC sensor configuration.
- M12 connector electrical connection.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1.5 kHz.
- LED switching indication for convenient status monitoring.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without physical contact, providing repeatable position and presence feedback while eliminating the mechanical wear associated with contact-based sensing devices. The Carlo Gavazzi ICB18L50F05POM1 provides a practical solution for detecting machine components, fixtures and moving metal parts throughout automated production equipment.
Its flush-mountable M18 construction allows the sensing face to be incorporated neatly into suitable metal structures, while the 5 mm sensing distance and fast 1.5 kHz switching capability support responsive machine control. The rugged nickel-plated brass housing and IP67 protection further enhance reliability in demanding industrial environments.
Typical Applications
- Industrial machine position and presence sensing.
- Conveyor and material handling systems.
- Metal component detection.
- Packaging and production machinery.
- Assembly and manufacturing automation.
- Machine tools and automated production equipment.
- PLC-based industrial control systems.
