Why Choose the Carlo Gavazzi ICB18L50F12NCM1 Inductive Proximity Sensor?

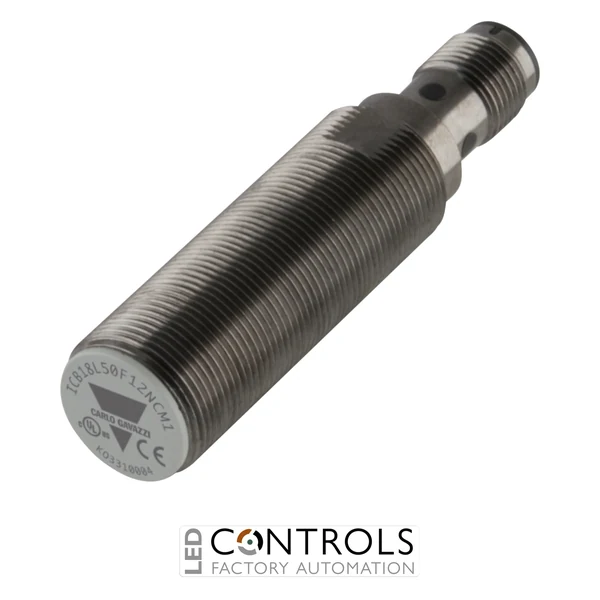

The Carlo Gavazzi ICB18L50F12NCM1 is a high-performance M18 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB18 series, it combines an increased sensing range with a robust nickel-plated brass threaded housing and long-body construction for dependable operation in demanding machine-building and manufacturing environments.
This sensor provides a rated operating distance of 12 mm and is designed for quasi-flush mounting in metal, providing increased sensing capability while supporting compact machine integration. Its NPN normally closed (NC) output enables straightforward connection to compatible PLC inputs and industrial control equipment, while the inductive sensing principle provides repeatable target detection without physical contact.
With a rated operating voltage of 10–36 V DC, maximum output current of 200 mA and maximum switching frequency of 1.5 kHz, the ICB18L50F12NCM1 is suitable for responsive industrial sensing applications. Its M12 plug connection, IP67 protection and operating temperature range of -25 to +70 °C make it well suited to conveyors, production machinery, automated assembly equipment and material handling systems.
Key Advantages
- Industrial M18 inductive proximity sensor with increased sensing range.
- 12 mm rated operating distance for reliable metallic target detection.
- NPN normally closed output for integration with compatible PLC and machine-control inputs.
- Quasi-flush mounting supports increased sensing range while allowing efficient machine integration.
- 10–36 V DC operating range suits common industrial control systems.
- 1.5 kHz maximum switching frequency supports responsive machine detection.
- Durable nickel-plated brass housing for industrial applications.
- M12 plug connection simplifies installation, replacement and maintenance.
Key Features
- Carlo Gavazzi ICB18 inductive proximity sensor series.
- M18 cylindrical threaded housing.
- Long-body sensor construction.
- 12 mm rated operating distance.
- Quasi-flush mounting configuration.
- NPN normally closed (NC) switching output.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- 1.5 kHz maximum switching frequency.
- M12 plug connector for convenient electrical connection.
- Nickel-plated brass housing for mechanical durability.
- IP67 protection for demanding industrial environments.
- Operating temperature range from -25 to +70 °C.
Reliable Inductive Sensing for Industrial Machinery
Inductive proximity sensors such as the Carlo Gavazzi ICB18L50F12NCM1 detect metallic targets by generating an electromagnetic sensing field. When a suitable metal object enters the sensing zone, the sensor changes its solid-state output without requiring physical contact, providing repeatable position and presence feedback while reducing mechanical wear compared with conventional mechanical switches.
The ICB18L50F12NCM1 combines an M18 long-body format with an increased 12 mm sensing distance, quasi-flush installation and NPN normally closed output. Its 1.5 kHz switching frequency, robust IP67 construction and detachable M12 connection make it a practical sensing solution for machine builders and automation engineers requiring dependable metallic target detection.
Typical Applications
- Industrial machine position and presence detection.
- Conveyor and material handling systems.
- Metal component detection and counting.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine movement and end-position monitoring.
- Manufacturing and processing equipment.
- OEM machinery and PLC-based automation systems.
