Why Choose the Carlo Gavazzi ICB18L50N14PAM1 Inductive Proximity Sensor?

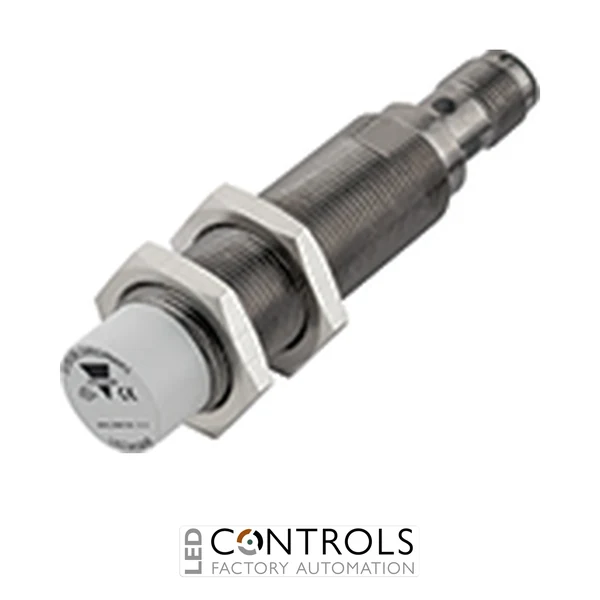

The Carlo Gavazzi ICB18L50N14PAM1 is a robust 4-wire M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB18 series, it combines an extended sensing range with a durable nickel-plated brass housing, long-body construction and convenient M12 connector for dependable operation in demanding industrial environments.
This sensor provides an extended 14 mm rated sensing distance with complementary PNP normally open and normally closed outputs. Its non-flush, unshielded mounting configuration provides increased sensing range for applications where greater target detection distance is required, including machine positioning, component detection, conveyors and automated production equipment.
With a rated operating voltage of 10–36 V DC, maximum output current of 200 mA and switching frequency of up to 1.5 kHz, the ICB18L50N14PAM1 provides fast and dependable switching for industrial control systems. Its M12 plug connector, IP67 protection and rugged M18 construction simplify installation and maintenance while supporting reliable operation in industrial environments.
Key Advantages
- Robust 4-wire M18 inductive proximity sensor for industrial automation.
- 14 mm extended sensing distance for reliable non-contact metal detection.
- PNP NO+NC complementary outputs provide flexible control-system integration.
- Non-flush, unshielded mounting provides increased target detection range.
- M12 plug connector simplifies installation, maintenance and sensor replacement.
- Fast switching performance of up to 1.5 kHz.
- Durable IP67 nickel-plated brass housing for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB18 series inductive proximity sensor.
- M18 threaded cylindrical long-body housing.
- 14 mm rated operating distance.
- Extended sensing range.
- Non-flush mounting configuration.
- 4-wire PNP NO+NC output.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current at up to 50 °C.
- Maximum switching frequency of 1.5 kHz.
- IP67 ingress protection.
- M12 connector termination.
- Integrated yellow LED indication.
- Short-circuit, reverse-polarity and transient protection.
Reliable Extended-Range Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICB18L50N14PAM1 detect metallic targets without requiring physical contact. This eliminates the mechanical wear associated with conventional contact switches and enables reliable, repeatable detection in high-cycle machinery, positioning systems and automated production equipment.
The ICB18L50N14PAM1 combines a 14 mm extended sensing distance with complementary PNP NO+NC outputs and a robust M18 long-body format. Its non-flush mounting arrangement and M12 connector make it particularly suitable for industrial applications requiring increased sensing distance, flexible output functionality and straightforward sensor replacement.
Typical Applications
- Industrial machinery and factory automation systems.
- Metal component presence and position detection.
- Conveyor and material handling systems.
- End-of-travel and machine position sensing.
- Packaging and production machinery.
- Assembly and manufacturing equipment.
