Why Choose the Carlo Gavazzi ICB18L50N20NO Inductive Proximity Sensor?

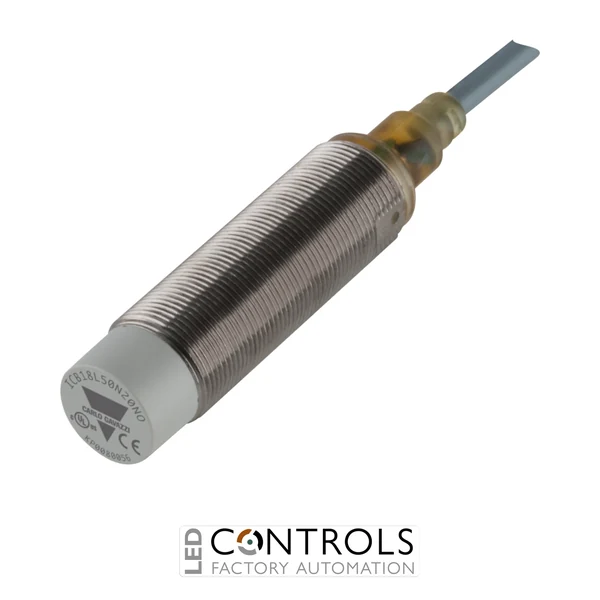

The Carlo Gavazzi ICB18L50N20NO is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB series, this increased-range sensor combines a long cylindrical threaded housing with a substantial 20 mm rated operating distance for applications where greater sensing clearance is required.
The ICB18L50N20NO features a three-wire NPN normally open (NO) output and is designed for non-flush mounting. Its 10–36 V DC supply range provides compatibility with common industrial control voltages, making the sensor suitable for connection to compatible PLC inputs, machine controllers and automation equipment.
Featuring a durable nickel-plated brass M18 housing, integral 2 m cable and IP67 protection rating, the ICB18L50N20NO is engineered for dependable industrial operation. A maximum output current of 200 mA and maximum switching frequency of 1.5 kHz support responsive object detection in automated production, conveying and material handling equipment.
Key Advantages
- Increased-range M18 inductive proximity sensor for metallic target detection.
- 20 mm rated sensing distance provides generous clearance between sensor and target.
- NPN normally open output for compatible industrial control circuits.
- Non-flush mounting configuration optimised for increased sensing range.
- Integral 2 m cable provides a straightforward electrical connection.
- Wide 10–36 V DC operating range for industrial automation equipment.
- Robust nickel-plated brass construction with IP67 protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M18 cylindrical threaded housing.
- Long-body design for flexible installation.
- 20 mm rated operating distance.
- Non-flush mounting configuration.
- NPN normally open (NO) switching output.
- Three-wire DC operation.
- 2 m integral cable connection.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1.5 kHz.
- Operating temperature range of -25 °C to +70 °C.
- IP67-rated environmental protection.
Reliable Increased-Range Metal Detection for Industrial Machinery
Inductive proximity sensors detect metallic objects without physical contact, providing repeatable position and presence feedback without the mechanical wear associated with contact-operated switches. The Carlo Gavazzi ICB18L50N20NO combines this proven sensing principle with an increased 20 mm operating distance, making it particularly useful where greater separation is required between the sensing face and target.
The long M18 threaded housing provides installation flexibility, while the integral cable simplifies connection to industrial control equipment. Its fast switching capability, rugged metal construction and IP67 protection make the ICB18L50N20NO suitable for machine building, automated manufacturing and material handling applications.
Typical Applications
- Industrial machinery position and presence sensing.
- Conveyor and material handling systems.
- Metal component and workpiece detection.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- PLC-based industrial automation systems.
