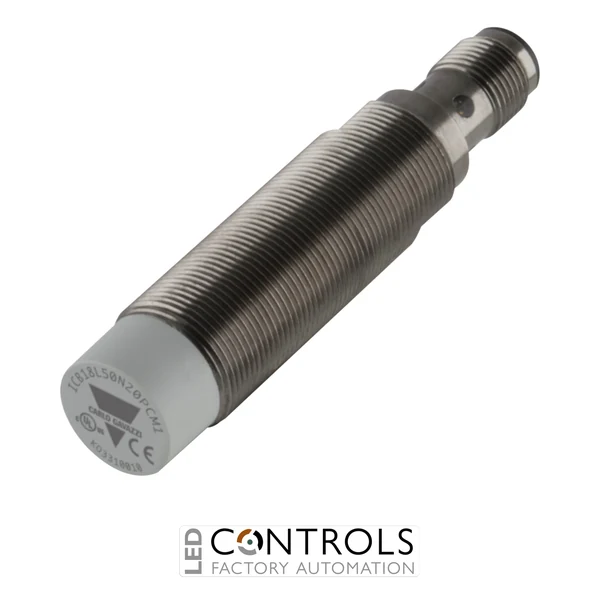

Why Choose the Carlo Gavazzi ICB18L50N20POM1 Inductive Proximity Sensor?
The Carlo Gavazzi ICB18L50N20POM1 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB series, it combines an increased sensing range, long threaded body and durable nickel-plated brass housing for dependable industrial sensing.
The ICB18L50N20POM1 provides a PNP normally open (NO) output with an increased rated operating distance of 20 mm. Its non-flush mounting configuration supports this extended detection range, making it particularly suitable for applications where greater clearance between the sensor and metallic target is required.
Operating from 10–36 V DC, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 1.5 kHz. Its long M18 cylindrical housing, detachable M12 connector, operating temperature range of -25 to +70 °C and IP67 protection support reliable integration into demanding industrial automation equipment.
Key Advantages
- Robust M18 inductive proximity sensor for non-contact metal detection.
- 20 mm increased sensing distance provides substantial target detection range.
- PNP normally open output for compatible PLC and industrial control inputs.
- Non-flush mounting configuration designed for increased-range sensing.
- Wide 10–36 V DC operating range for industrial automation systems.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1.5 kHz supports responsive target detection.
- M12 connector simplifies installation, maintenance and sensor replacement.
- Nickel-plated brass housing with IP67 ingress protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M18 cylindrical threaded housing.
- Long-body design.
- 20 mm rated operating distance.
- Increased sensing range.
- Non-flush mounting configuration.
- PNP normally open (NO) output.
- 10–36 V DC rated operating voltage.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1.5 kHz.
- M12 connector electrical connection.
- Nickel-plated brass housing for industrial durability.
- Operating temperature range from -25 to +70 °C.
- IP67 ingress protection.
Increased-Range Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact, providing a wear-free sensing method for position, presence and movement detection. This operating principle is widely used throughout automated machinery, conveying equipment, machine tools and industrial production systems where dependable detection of metal components is required.
The ICB18L50N20POM1 combines a substantial 20 mm rated sensing distance with an M18 long-body housing and non-flush installation. Its PNP normally open output provides a switching signal for compatible PLC and industrial control inputs, while the detachable M12 connector facilitates installation, servicing and sensor replacement.
Typical Applications
- Industrial machine position and presence detection.
- Conveyor and material handling systems.
- Metal component detection on production lines.
- Packaging and assembly machinery.
- Machine tools and automated positioning equipment.
- Manufacturing and production machinery.
- PLC-controlled machinery and factory automation systems.
