Why Choose the Carlo Gavazzi ICB18S30F05NAM1 Inductive Proximity Sensor?

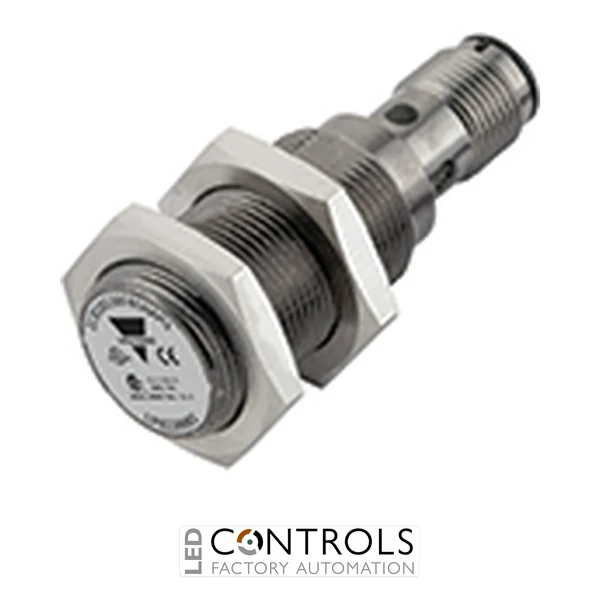

The Carlo Gavazzi ICB18S30F05NAM1 is a compact 4-wire M18 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB series, this standard-range model combines a short cylindrical body with dual switching outputs and an M12 connector for convenient installation and maintenance.
The ICB18S30F05NAM1 provides a 5 mm rated sensing distance and is designed for flush mounting. Its NPN NO+NC output configuration provides both normally open and normally closed switching functions from the same 4-wire sensor, giving machine builders and automation engineers additional flexibility when integrating the sensor with control equipment.
With a durable nickel-plated brass M18 housing, 10–36 V DC supply range, maximum 200 mA load current and IP67 protection, the ICB18S30F05NAM1 is engineered for dependable industrial operation. Its short M18 body and M12 plug connection make it particularly suitable for machinery where installation space is limited and quick sensor replacement is desirable.
Key Advantages
- Compact M18 short-body inductive proximity sensor for industrial automation.
- 5 mm rated sensing distance for reliable metallic target detection.
- 4-wire NPN NO+NC outputs provide both normally open and normally closed switching functions.
- Flush-mountable design supports neat integration into suitable machine structures.
- M12 connector simplifies installation, servicing and sensor replacement.
- Fast 1.5 kHz switching frequency supports responsive machine control.
- Rugged nickel-plated brass housing with IP67 protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M18 cylindrical threaded housing.
- Short-body construction for space-conscious installations.
- 5 mm rated operating distance.
- Flush mounting configuration.
- NPN normally open + normally closed (NO+NC) outputs.
- 4-wire DC electrical configuration.
- M12 connector electrical connection.
- 10–36 V DC supply.
- Maximum switching frequency of 1.5 kHz.
- Yellow LED switching indication.
- Short-circuit, reverse-polarity and transient protection.
Reliable Dual-Output Metal Detection for Industrial Machinery
Inductive proximity sensors detect metallic objects without physical contact, providing repeatable position and presence feedback while avoiding the mechanical wear associated with contact-operated switches. The Carlo Gavazzi ICB18S30F05NAM1 combines this proven sensing principle with a compact M18 format and a 5 mm sensing distance for reliable machine automation.
Its 4-wire NPN design provides both NO and NC switching outputs, giving designers flexibility when configuring control logic and allowing either switching state to be utilised as required. The flush-mountable short housing simplifies mechanical integration, while the M12 connector and integrated electrical protection support efficient installation and dependable operation in industrial environments.
Typical Applications
- Industrial machinery position and presence sensing.
- Conveyor and material handling systems.
- Metal component and workpiece detection.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- PLC-based industrial automation systems.
