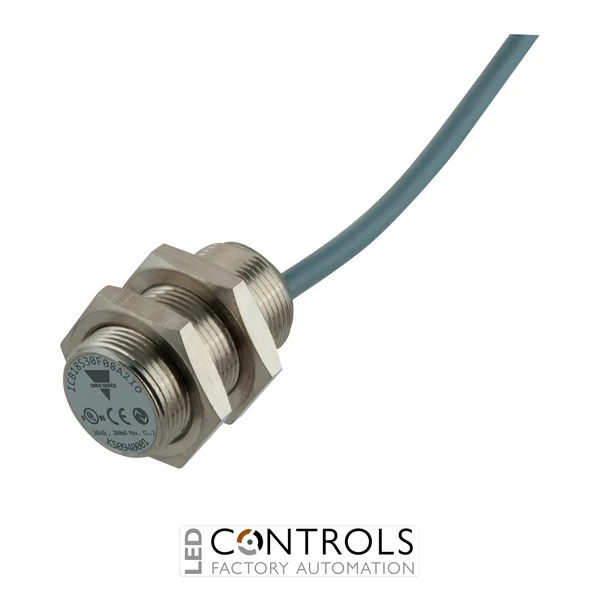

Why Choose the Carlo Gavazzi ICB18S30F08A2IO IO-Link Inductive Proximity Sensor?
The Carlo Gavazzi ICB18S30F08A2IO is a compact and configurable M18 inductive proximity sensor with IO-Link designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the advanced Carlo Gavazzi ICB series, it combines conventional proximity sensing with IO-Link communication for enhanced configuration, diagnostics and integration into modern automated equipment.
This sensor provides a maximum rated sensing distance of 8 mm, which can be configured to 33%, 50%, 75% or 100% of the maximum sensing distance. Its electrical output is also configurable as PNP, NPN or push-pull with normally open or normally closed operation, providing significant flexibility when integrating the sensor into different machine control architectures.
With a 10–36 V DC operating supply, maximum output current of 200 mA and switching frequency of up to 1.5 kHz, the ICB18S30F08A2IO provides fast and dependable sensing performance. Its flush-mountable short-body design, nickel-plated brass housing, 2 m cable and IP67 protection rating make it well suited to compact and demanding industrial installations.
Key Advantages
- Advanced M18 inductive proximity sensor with IO-Link communication.
- 8 mm maximum rated sensing distance with configurable sensing levels.
- Configurable PNP, NPN or push-pull output for flexible automation integration.
- Selectable normally open or normally closed switching functionality.
- Flush-mountable short-body design for compact machine installations.
- Fast switching performance of up to 1.5 kHz.
- Durable IP67 nickel-plated brass housing for industrial environments.
Key Features
- Carlo Gavazzi ICB series IO-Link inductive proximity sensor.
- M18 threaded cylindrical housing.
- 8 mm maximum rated operating distance.
- Configurable sensing distance at 33%, 50%, 75% or 100% of maximum range.
- PNP / NPN / push-pull configurable output.
- Normally open / normally closed configurable switching.
- IO-Link communication for intelligent sensor integration.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- Maximum switching frequency of 1.5 kHz.
- IP67 ingress protection.
- 2 m cable connection.
- Compact short-body, flush-mountable construction.
Intelligent Metal Detection with IO-Link Connectivity
Inductive proximity sensors such as the Carlo Gavazzi ICB18S30F08A2IO detect metallic targets without physical contact, helping eliminate mechanical wear while providing reliable and repeatable switching in high-cycle industrial machinery. The configurable sensing distance allows the sensor to be adapted to different target positions and application requirements.
IO-Link connectivity adds intelligent configuration and communication capabilities beyond those of a conventional proximity switch. The configurable PNP, NPN and push-pull outputs, selectable switching logic and adjustable sensing distance make the ICB18S30F08A2IO particularly versatile for machine builders and automation engineers seeking flexible sensing within modern control systems.
Typical Applications
- Industrial machinery and smart factory automation.
- Metal component presence and position detection.
- Conveyor and material handling systems.
- Automated assembly and production equipment.
- Packaging and processing machinery.
- IO-Link enabled machine building and condition monitoring systems.
