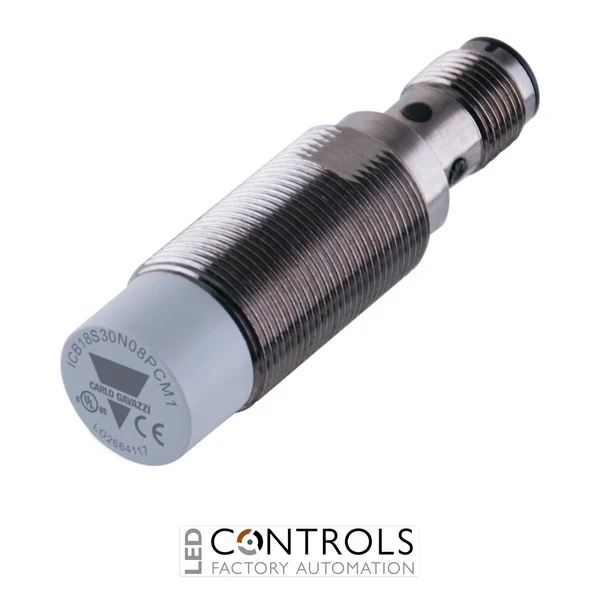

Why Choose the Carlo Gavazzi ICB18S30N08POM1 Inductive Proximity Sensor?
The Carlo Gavazzi ICB18S30N08POM1 is a compact and robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB18 series, it combines an extended sensing range with a short cylindrical housing and convenient M12 connector for dependable operation in demanding industrial environments.
This sensor provides an 8 mm rated sensing distance with a PNP normally open output. Its non-flush, unshielded mounting configuration provides increased sensing range compared with flush-mounted sensors, making it suitable for machine positioning, component detection, conveyor systems and automated production equipment.
With a 10–36 V DC operating supply, maximum output current of 200 mA and maximum switching frequency of 1.5 kHz, the ICB18S30N08POM1 provides fast and reliable switching for industrial control systems. Its short-body M18 nickel-plated brass housing, M12 plug connector and IP67 protection rating provide a durable and practical sensing solution for factory automation and machine-building applications.
Key Advantages
- Compact M18 inductive proximity sensor designed for industrial automation.
- 8 mm rated sensing distance for reliable non-contact metal detection.
- PNP normally open output for integration with compatible PLC and control systems.
- Non-flush, unshielded mounting provides increased target detection range.
- M12 plug connector simplifies installation, maintenance and sensor replacement.
- Fast switching performance of up to 1.5 kHz.
- Durable IP67 nickel-plated brass housing for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB18 series inductive proximity sensor.
- M18 threaded cylindrical housing.
- Short-body design for space-conscious installations.
- 8 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open output.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- Maximum switching frequency of 1.5 kHz.
- IP67 ingress protection.
- M12 4-pin plug connector.
- LED indication for output status.
- Reverse-polarity, short-circuit and transient protection.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICB18S30N08POM1 detect metallic targets without requiring physical contact. This eliminates the mechanical wear associated with conventional contact switches and enables reliable, repeatable operation in high-cycle machinery, positioning systems and automated production equipment.
The ICB18S30N08POM1 combines an 8 mm sensing distance with a non-flush M18 configuration and compact short-body construction. Its PNP normally open output, M12 connector and wide DC supply range make it straightforward to integrate with compatible PLCs, machine controllers and industrial automation systems.
Typical Applications
- Industrial machinery and factory automation systems.
- Metal component presence and position detection.
- Conveyor and material handling systems.
- End-of-travel and machine position sensing.
- Packaging and production machinery.
- Assembly and manufacturing equipment.
