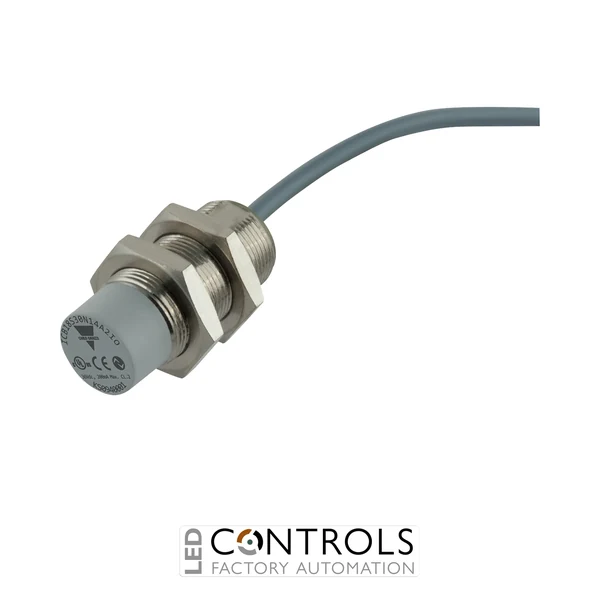

Why Choose the Carlo Gavazzi ICB18S30N14A2IO IO-Link Inductive Proximity Sensor?
The Carlo Gavazzi ICB18S30N14A2IO is a compact and configurable M18 inductive proximity sensor with IO-Link designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB18 series, it combines extended-range inductive sensing with intelligent IO-Link communication, allowing enhanced configuration and integration within modern automated equipment.
This sensor provides a maximum rated sensing distance of 14 mm, with selectable operating distances of approximately 4.6, 7, 10.5 or 14 mm. Its electrical output can be configured as PNP, NPN or push-pull with normally open or normally closed switching, providing substantial flexibility when adapting the sensor to different PLC inputs and machine control architectures.
With a 10–36 V DC operating supply, maximum output current of 200 mA and switching frequency of up to 1.5 kHz, the ICB18S30N14A2IO provides fast and dependable sensing performance. Its non-flush short-body design, nickel-plated brass M18 housing, 2 m cable and IP67 protection rating make it well suited to demanding industrial installations where increased sensing distance and intelligent connectivity are required.
Key Advantages
- Advanced M18 inductive proximity sensor with IO-Link communication.
- 14 mm maximum rated sensing distance with four configurable sensing levels.
- Configurable PNP, NPN or push-pull output for flexible automation integration.
- Selectable normally open or normally closed switching functionality.
- Non-flush mounting provides increased metal detection range.
- Short-body construction helps reduce installation space.
- Fast switching performance of up to 1.5 kHz.
- Durable IP67 nickel-plated brass housing for industrial environments.
Key Features
- Carlo Gavazzi ICB18 series IO-Link inductive proximity sensor.
- M18 threaded cylindrical housing.
- 14 mm maximum rated operating distance.
- Configurable sensing distance at 33%, 50%, 75% or 100% of maximum range.
- Non-flush mounting configuration.
- PNP / NPN / push-pull configurable output.
- Normally open / normally closed configurable switching.
- IO-Link communication for intelligent sensor integration and configuration.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- Maximum switching frequency of 1.5 kHz.
- IP67 ingress protection.
- 2 m cable connection.
- Compact short-body construction.
Intelligent Extended-Range Detection with IO-Link Connectivity
Inductive proximity sensors such as the Carlo Gavazzi ICB18S30N14A2IO detect metallic targets without requiring physical contact, helping eliminate mechanical wear while providing reliable and repeatable switching in high-cycle industrial machinery. Its non-flush configuration provides an extended sensing range, while the selectable sensing distance allows detection performance to be adapted to different target positions and machine requirements.
IO-Link connectivity adds intelligent configuration and communication capabilities beyond those of a conventional proximity switch. The configurable PNP, NPN and push-pull outputs, selectable NO or NC switching logic and adjustable sensing distance make the ICB18S30N14A2IO particularly versatile for machine builders and automation engineers requiring adaptable sensing within modern industrial control systems.
Typical Applications
- Industrial machinery and smart factory automation.
- Metal component presence and position detection.
- Conveyor and material handling systems.
- Automated assembly and production equipment.
- Packaging and processing machinery.
- IO-Link enabled machine building and intelligent automation systems.
