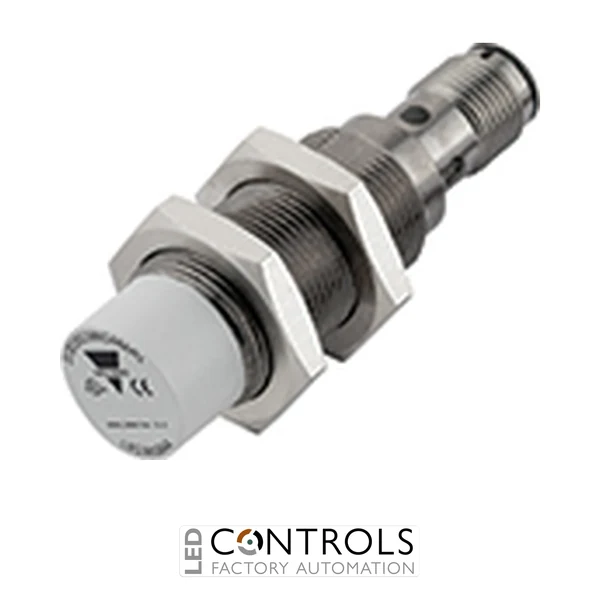

Why Choose the Carlo Gavazzi ICB18S30N14PAM1 Inductive Proximity Sensor?
The Carlo Gavazzi ICB18S30N14PAM1 is a high-performance M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine control applications. As part of the proven Carlo Gavazzi ICB18 series, this sensor combines extended sensing capability, rugged nickel-plated brass construction and dependable PNP switching performance for demanding industrial environments.
This sensor provides accurate object detection without mechanical contact, helping reduce component wear and improve machine reliability. The short-body cylindrical design with M12 plug connection enables straightforward installation in compact automation systems where consistent position monitoring is required.
With a 14 mm sensing distance, PNP normally open output, 4-wire configuration and a 10–36 V DC supply range, the ICB18S30N14PAM1 is suitable for industrial machinery, conveyors, material handling systems and automated production equipment.
Key Advantages
- Reliable M18 inductive proximity sensing technology for industrial automation.
- 14 mm extended sensing distance for improved detection capability.
- PNP normally open output for simple integration with PLCs and control systems.
- M12 plug connection allows fast installation and maintenance.
- Robust nickel-plated brass housing designed for industrial applications.
- IP67 protection rating provides resistance against dust and water ingress.
Key Features
- Carlo Gavazzi ICB18 series inductive proximity sensor.
- M18 threaded cylindrical sensor design.
- Short body construction.
- 14 mm rated operating distance.
- PNP normally open transistor output.
- 4-wire sensor configuration.
- M12 plug connector.
- 10–36 V DC operating voltage.
- 200 mA maximum output current.
- LED indication for output status and fault conditions.
- Protection against reverse polarity, short circuit and transients.
- Designed according to IEC 60947-5-2 standards.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic field and monitoring changes caused by the presence of an object. This non-contact operating principle provides reliable switching performance while eliminating mechanical wear associated with traditional limit switches.
The Carlo Gavazzi ICB18 series is designed for automation applications requiring increased sensing distance, robust construction and consistent operation. The compact M18 format and connector-based design allow easy integration into modern industrial control systems and machinery.
Typical Applications
- Industrial automation equipment.
- Machine position monitoring.
- Conveyor and material handling systems.
- Metal component detection.
- Packaging and production machinery.
- OEM machinery and control systems.
