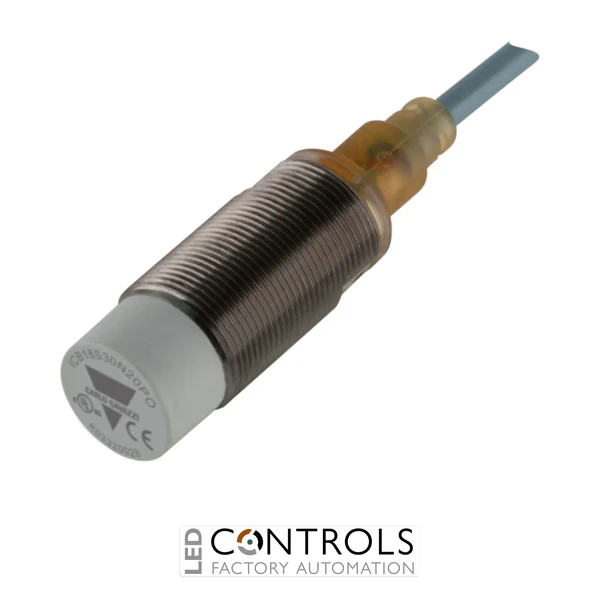

Why Choose the Carlo Gavazzi ICB18S30N20PO Inductive Proximity Sensor?
The Carlo Gavazzi ICB18S30N20PO is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB series, this increased-range model combines a compact short cylindrical body with a substantial 20 mm rated operating distance, making it suitable for applications where additional clearance between the sensor and target is required.
The ICB18S30N20PO features a PNP normally open (NO) output and is designed for non-flush mounting. Its 10–36 V DC supply range enables straightforward integration with compatible PLC inputs, machine controllers and other industrial automation equipment.
Featuring a durable nickel-plated brass M18 housing, integral 2 m cable, maximum output current of 200 mA and maximum switching frequency of 1.5 kHz, the ICB18S30N20PO provides responsive sensing performance for automated equipment. Its IP67 protection rating and operating temperature range of -25 °C to +70 °C support dependable operation in demanding industrial environments.
Key Advantages
- Increased-range M18 inductive proximity sensor for reliable metallic target detection.
- 20 mm rated sensing distance provides generous clearance between the sensor and target.
- PNP normally open output for compatible PLC and machine control circuits.
- Non-flush mounting configuration supports the increased sensing range.
- Short-body construction helps minimise installation space in machinery.
- Integral 2 m cable provides a straightforward electrical connection.
- Rugged nickel-plated brass housing with IP67 protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M18 cylindrical threaded housing.
- Short-body design with 30 mm threaded barrel.
- 20 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open (NO) switching output.
- 3-wire DC sensor configuration.
- 10–36 V DC operating supply.
- 2 m integral cable connection.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1.5 kHz.
- IP67 environmental protection.
Reliable Increased-Range Metal Detection for Industrial Machinery
Inductive proximity sensors such as the Carlo Gavazzi ICB18S30N20PO detect metallic objects without requiring physical contact. This enables repeatable position and presence feedback while avoiding the mechanical wear associated with contact-operated switches, making inductive sensing particularly suitable for frequently cycled machinery and automated production equipment.
The ICB18S30N20PO combines a compact M18 short-body format with a 20 mm sensing distance, providing increased detection clearance while retaining a practical cylindrical sensor format. Its non-flush mounting arrangement, fast switching performance and integral cable make it well suited to machine building, automated manufacturing and material handling systems.
Typical Applications
- Industrial machinery position and presence sensing.
- Conveyor and material handling systems.
- Metal component and workpiece detection.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- PLC-based industrial automation systems.
