Why Choose the Carlo Gavazzi ICB18S30N20POM1 Inductive Proximity Sensor?

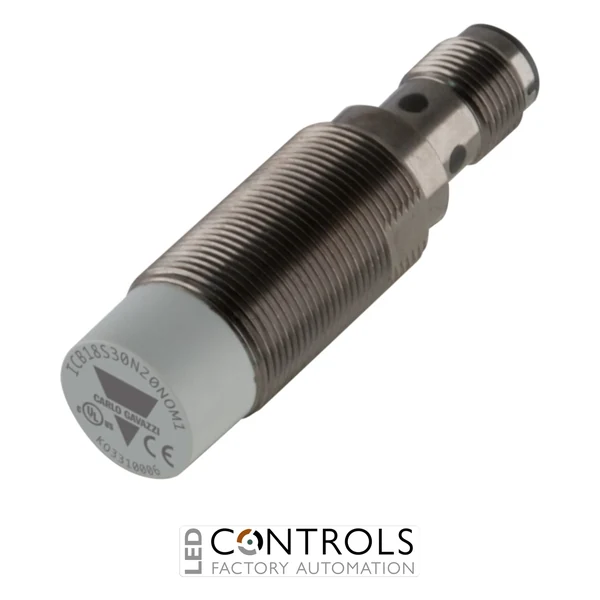

The Carlo Gavazzi ICB18S30N20POM1 is a compact M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB18 series, it combines a substantial sensing range with short-body construction, a rugged nickel-plated brass housing and an M12 plug connection for dependable industrial use.
This sensor provides an increased 20 mm rated sensing distance with a PNP normally open output. Its non-flush, unshielded installation configuration enables greater sensing distance than conventional flush-mounted M18 sensors, making it particularly useful for machine positioning, component detection and material handling applications where additional target clearance is beneficial.
With a 10–36 V DC operating supply, maximum output current of 200 mA and maximum switching frequency of 1.5 kHz, the ICB18S30N20POM1 delivers fast and dependable switching for industrial control systems. Its M12 plug connector, compact 64 mm overall length and IP67 protection rating provide a practical solution for machine builders and automation engineers.
Key Advantages
- Compact M18 inductive proximity sensor for industrial automation.
- 20 mm increased sensing distance for non-contact metal detection with greater target clearance.
- PNP normally open output for integration with compatible PLC and control-system inputs.
- Non-flush, unshielded mounting supports increased sensing performance.
- Short-body construction helps reduce installation space.
- M12 plug connector simplifies installation, servicing and sensor replacement.
- Fast switching performance of up to 1.5 kHz.
- Durable IP67 nickel-plated brass construction for industrial environments.
Key Features
- Carlo Gavazzi ICB18 series inductive proximity sensor.
- M18 threaded cylindrical housing.
- Short-body design.
- 20 mm rated operating distance.
- Increased sensing range.
- Non-flush mounting configuration.
- PNP normally open output.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- Maximum switching frequency of 1.5 kHz.
- IP67 ingress protection.
- M12 plug connector for convenient field connection.
- Robust nickel-plated brass housing.
Increased-Range Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICB18S30N20POM1 detect metallic targets without requiring physical contact. This eliminates the mechanical wear associated with conventional contact switches and provides reliable, repeatable detection for high-cycle machinery, positioning systems and automated production equipment.
The ICB18S30N20POM1 combines an increased 20 mm sensing distance with non-flush mounting and a compact short-body M18 housing. Its PNP normally open output, wide DC supply range and M12 connector make it straightforward to integrate with compatible PLCs, machine controllers and industrial automation systems where both extended detection range and compact construction are required.
Typical Applications
- Industrial machinery and factory automation systems.
- Metal component presence and position detection.
- Conveyor and material handling systems.
- End-of-travel and machine position sensing.
- Packaging and production machinery.
- Assembly and manufacturing equipment.
