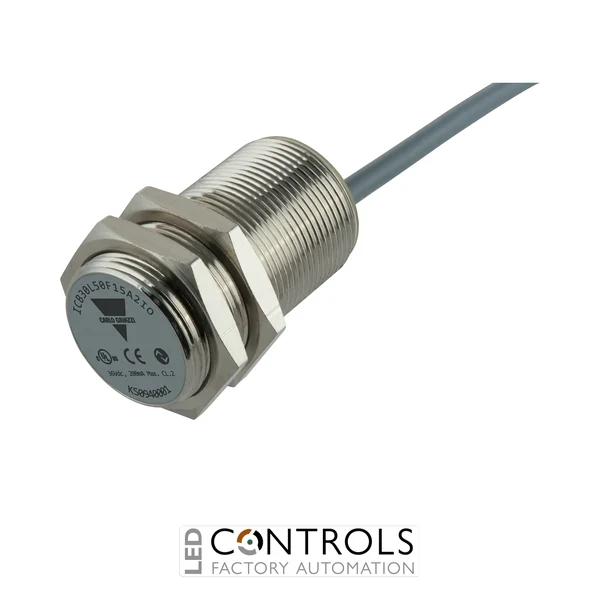

Why Choose the Carlo Gavazzi ICB30L50F15A2IO Inductive Proximity Sensor?
The Carlo Gavazzi ICB30L50F15A2IO is a robust M30 inductive proximity sensor with IO-Link designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB series, it combines conventional proximity sensing with configurable IO-Link functionality for flexible integration into modern control systems.
Featuring a nickel-plated brass threaded housing, long-body construction and flush-mountable design, the ICB30L50F15A2IO is engineered for dependable installation in demanding industrial environments. Its configurable output can operate as PNP, NPN or push-pull and can be set for normally open or normally closed operation, providing excellent flexibility for different PLC and machine-control architectures.
The sensor provides a maximum rated operating distance of 15 mm, operates from a 10–36 V DC supply and supports output currents up to 200 mA. A 2 m cable, IP67 protection and switching frequency up to 1 kHz make it well suited to industrial position sensing, presence detection and automated production equipment.
Key Advantages
- Integrated IO-Link communication for intelligent sensor configuration and diagnostics.
- 15 mm rated sensing distance for reliable non-contact metal detection.
- Configurable PNP, NPN or push-pull output for flexible control-system integration.
- Programmable normally open or normally closed switching function.
- Flush-mountable M30 housing simplifies installation in machinery and equipment.
- Durable nickel-plated brass construction with IP67 environmental protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M30 × 1.5 threaded long-body housing.
- 15 mm maximum rated operating distance.
- 10–36 V DC operating voltage.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1 kHz.
- Configurable PNP / NPN / push-pull, NO / NC output.
- 2 m cable connection.
- Operating temperature range of -25 to +70 °C.
- IP67 protection rating.
Intelligent Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact, helping minimise mechanical wear while providing repeatable position and presence feedback. The Carlo Gavazzi ICB30L50F15A2IO uses an M30 threaded sensing body and extended sensing range to provide dependable metal-object detection in automated machinery, material handling systems and production equipment.
IO-Link functionality adds flexible configuration and communication capabilities beyond those of a conventional proximity switch. The ICB30L50F15A2IO allows parameters including sensing distance and electrical output behaviour to be configured, helping machine builders standardise sensor hardware while adapting its operation to individual applications.
Typical Applications
- Industrial machinery position and presence detection.
- Conveyor and material handling systems.
- Automated assembly and production lines.
- Metal component detection and counting.
- Packaging and processing machinery.
- PLC-controlled automation systems using IO-Link.
- Machine building and OEM automation equipment.
