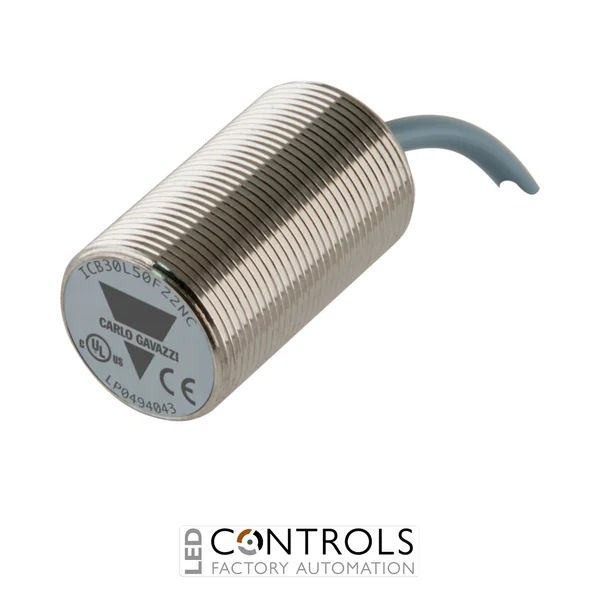

Why Choose the Carlo Gavazzi ICB30L50F22NO Inductive Proximity Sensor?
The Carlo Gavazzi ICB30L50F22NO is a robust M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB30 series, it combines a 3× increased sensing range with a durable nickel-plated brass housing and long-body construction for dependable operation in demanding industrial environments.
This sensor provides a substantial 22 mm rated sensing distance with a 3-wire NPN normally open output. Its quasi-flush mounting configuration combines increased sensing performance with practical installation flexibility, making it particularly suitable for machine positioning, component detection, conveyor systems and automated production equipment.
With a 10–36 V DC operating supply, maximum output current of 200 mA and maximum switching frequency of 100 Hz, the ICB30L50F22NO provides dependable switching for industrial control systems. Its 2 m cable, long M30 threaded barrel, nickel-plated brass construction and IP67 protection rating provide a durable sensing solution for factory automation and machine-building applications.
Key Advantages
- Robust M30 inductive proximity sensor designed for industrial automation.
- 22 mm 3× increased sensing distance for reliable non-contact metal detection.
- NPN normally open, 3-wire output for integration with compatible PLC and control-system inputs.
- Quasi-flush mounting combines increased sensing range with practical installation.
- Long-body M30 construction provides a substantial threaded mounting area.
- 2 m cable connection supports straightforward hard-wired installation.
- Durable IP67 nickel-plated brass housing for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB30 series inductive proximity sensor.
- M30 threaded cylindrical housing.
- Long-body design.
- 22 mm rated operating distance.
- 3× increased sensing range.
- Quasi-flush mounting configuration.
- NPN normally open output.
- 3-wire DC configuration.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- Maximum switching frequency of 100 Hz.
- IP67 ingress protection.
- 2 m cable connection.
- Robust nickel-plated brass housing.
- LED indication for output status.
- Reverse-polarity, short-circuit and transient protection.
Reliable Increased-Range Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICB30L50F22NO detect metallic targets without requiring physical contact. This eliminates the mechanical wear associated with conventional contact switches and provides reliable, repeatable detection for industrial machinery, positioning systems, material handling equipment and automated production processes.
The ICB30L50F22NO combines a substantial 22 mm sensing distance with a quasi-flush M30 configuration and long-body construction. Its NPN normally open output, wide DC supply range and integrated cable make it straightforward to integrate with compatible PLCs and machine controllers where increased sensing performance and robust industrial construction are required.
Typical Applications
- Industrial machinery and factory automation systems.
- Metal component presence and position detection.
- Conveyor and material handling systems.
- End-of-travel and machine position sensing.
- Packaging and production machinery.
- Assembly and manufacturing equipment.
