Why Choose the Carlo Gavazzi ICB30L50N22A2IO Inductive Proximity Sensor?

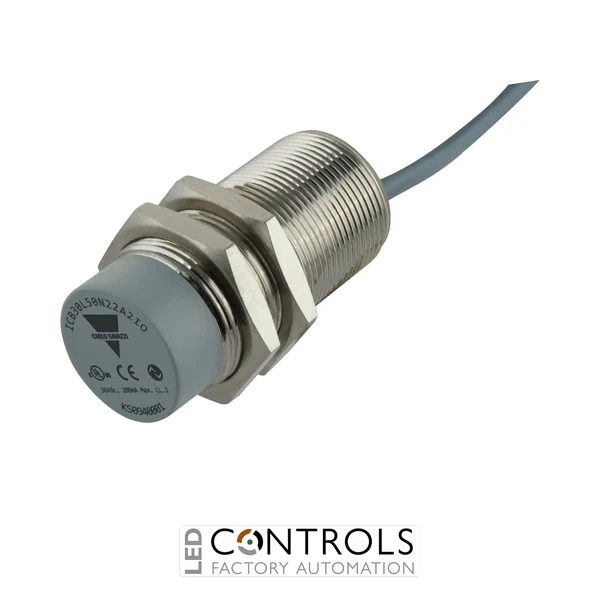

The Carlo Gavazzi ICB30L50N22A2IO is an advanced M30 inductive proximity sensor with IO-Link designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB IO-Link inductive sensor series, it combines an extended sensing range, configurable switching functions and intelligent communication capabilities within a robust long-body metal housing.
This sensor provides a maximum rated operating distance of 22 mm with non-flush mounting. Through IO-Link, the sensing distance can be configured to 33%, 50%, 75% or 100% of the maximum range, while the electrical output can be configured as PNP, NPN or push-pull and as normally open or normally closed. This flexibility allows one sensor to be adapted to a wide range of machine-control requirements.
With a 10–36 V DC supply, maximum output current of 200 mA and switching frequency up to 1 kHz, the ICB30L50N22A2IO provides responsive sensing for position, presence and rotational speed monitoring. Its nickel-plated brass M30 housing, integrated 2 m cable and IP67 protection rating support dependable operation in demanding industrial environments.
Key Advantages
- Advanced IO-Link communication enables remote configuration and diagnostic functionality.
- Extended 22 mm maximum rated operating distance reduces the need for close target positioning.
- Configurable PNP, NPN or push-pull switching output provides flexible control-system integration.
- Output function can be configured as normally open or normally closed.
- Adjustable sensing distance allows optimisation for different machine and target requirements.
- IP67 nickel-plated brass housing provides robust protection for industrial installations.
Key Features
- Carlo Gavazzi ICB IO-Link inductive proximity sensor series.
- M30 cylindrical threaded housing.
- Long-body configuration.
- Maximum rated operating distance of 22 mm.
- Non-flush mounting.
- Configurable PNP / NPN / push-pull output.
- Configurable normally open / normally closed switching function.
- IO-Link communication for intelligent sensor configuration.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- Maximum switching frequency of 1 kHz.
- Integrated 2 m cable.
- Nickel-plated brass construction with IP67 protection.
Intelligent Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects using an electromagnetic sensing field, enabling reliable position and presence detection without physical contact with the target. The contactless operating principle reduces mechanical wear and provides repeatable sensing performance for high-cycle industrial machinery and automated production equipment.
The ICB30L50N22A2IO adds IO-Link functionality to conventional inductive sensing, allowing parameters such as sensing distance, hysteresis, switching behaviour and timer functions to be configured for the application. IO-Link also supports enhanced diagnostic capabilities, including temperature monitoring, helping machine builders and automation engineers develop more flexible and intelligent control systems.
Typical Applications
- Industrial conveyors and material handling systems.
- Metal component presence and position detection.
- Rotational speed monitoring.
- Packaging and production machinery.
- Automated assembly and manufacturing equipment.
- IO-Link enabled smart machinery and automation systems.
