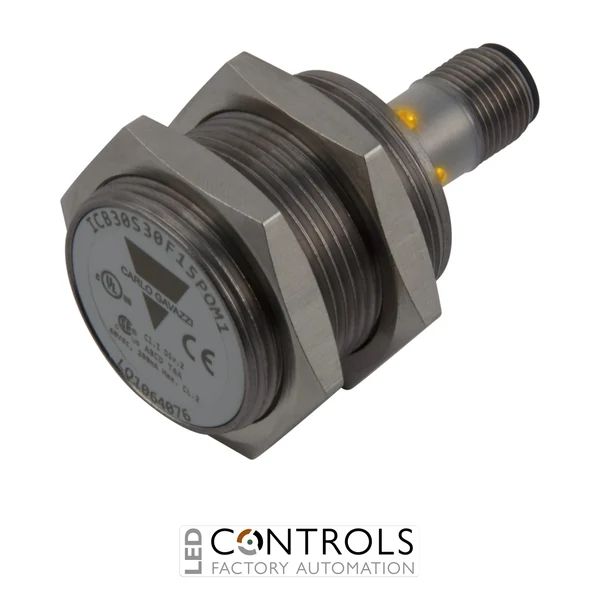

Why Choose the Carlo Gavazzi ICB30S30F15POM1 Inductive Proximity Sensor?
The Carlo Gavazzi ICB30S30F15POM1 is an extended-range M30 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB series, this model combines a compact short-body cylindrical housing with a generous 15 mm rated operating distance.
The ICB30S30F15POM1 features a PNP normally open (NO) output and is specifically designed for flush mounting. Its 10–36 V DC supply range makes it suitable for integration with compatible PLC inputs, machine controllers and other industrial automation equipment requiring dependable metallic object detection.
A durable nickel-plated brass M30 housing, M12 connector, maximum output current of 200 mA and maximum switching frequency of 1 kHz provide dependable sensing performance. The sensor is rated IP67 and its short-body construction incorporates a 30 mm threaded mounting section, making it a practical solution where compact installation and extended sensing range are required.
Key Advantages
- Extended-range M30 inductive proximity sensor for reliable metallic target detection.
- 15 mm rated sensing distance provides increased target clearance.
- Flush-mountable design supports neat integration into suitable machine structures.
- PNP normally open output for compatible PLC and machine control circuits.
- Short-body construction helps reduce installation space.
- M12 connector simplifies wiring, maintenance and sensor replacement.
- Robust nickel-plated brass housing with IP67 protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M30 cylindrical threaded housing.
- Short-body construction.
- 15 mm rated operating distance.
- Flush mounting configuration.
- PNP normally open (NO) switching output.
- 10–36 V DC operating supply.
- M12 connector electrical connection.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1 kHz.
- Nickel-plated brass industrial housing.
- IP67 ingress protection.
Reliable Extended-Range Metal Detection for Industrial Machinery
Inductive proximity sensors such as the Carlo Gavazzi ICB30S30F15POM1 detect metallic objects without requiring physical contact. This provides repeatable position and presence feedback while avoiding the mechanical wear associated with contact-operated switches, making inductive sensing particularly suitable for frequently cycled industrial machinery and automated production equipment.
The ICB30S30F15POM1 combines a compact M30 short-body housing with a 15 mm sensing distance and flush mounting capability. Its PNP normally open output, fast 1 kHz switching frequency and convenient M12 connector make it a practical sensing solution for machine building, manufacturing, conveying and material handling systems.
Typical Applications
- Industrial machinery position and presence sensing.
- Conveyor and material handling equipment.
- Metal component and workpiece detection.
- Packaging and production machinery.
- Automated assembly systems.
- Machine tools and manufacturing equipment.
- PLC-based industrial automation systems.
- Applications requiring flush installation with increased sensing distance.
