Why Choose the Carlo Gavazzi ICB30S30N22A2IO Inductive Proximity Sensor?

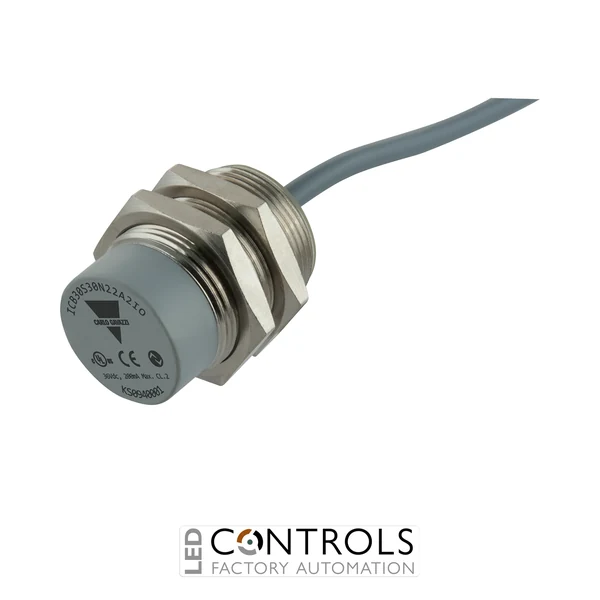

The Carlo Gavazzi ICB30S30N22A2IO is a compact M30 inductive proximity sensor with IO-Link designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB series, it combines intelligent sensor communication with a short-body, non-flush design for flexible integration into modern factory automation equipment.
Featuring a rugged nickel-plated brass housing, the ICB30S30N22A2IO provides a maximum rated operating distance of 22 mm. IO-Link allows the sensing distance to be configured to 33%, 50%, 75% or 100% of the maximum range, while the electrical output can be configured for PNP, NPN or push-pull operation and normally open or normally closed switching.
The sensor operates from a 10–36 V DC supply, supports output currents up to 200 mA and provides a maximum switching frequency of 1 kHz. Its 2 m integral cable, IP67 protection and compact M30 × 44 mm dimensions make it well suited to industrial position sensing, presence detection, component counting and rotational speed monitoring.
Key Advantages
- Integrated IO-Link communication for intelligent configuration and sensor monitoring.
- Maximum 22 mm rated sensing distance for reliable non-contact metal detection.
- Adjustable sensing distance of approximately 7.3 / 11 / 16.5 / 22 mm.
- Configurable PNP, NPN or push-pull output for flexible control-system integration.
- Programmable normally open or normally closed switching operation.
- Short-body M30 construction helps reduce installation depth.
- 1 kHz maximum switching frequency supports fast-moving detection applications.
- Rugged nickel-plated brass housing with IP67 environmental protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M30 cylindrical threaded housing.
- Short-body, non-flush design.
- 22 mm maximum rated operating distance.
- IO-Link configurable sensing distance: 33%, 50%, 75% or 100%.
- 10–36 V DC operating supply.
- Configurable PNP / NPN / push-pull output.
- Configurable normally open / normally closed switching.
- Maximum output current of 200 mA.
- Maximum switching frequency of 1 kHz.
- 2 m cable connection.
- Operating temperature range of -25 to +70 °C.
- IP67 protection rating.
Intelligent Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without physical contact, helping minimise mechanical wear while providing repeatable position and presence feedback. The Carlo Gavazzi ICB30S30N22A2IO combines a compact M30 threaded housing with an extended 22 mm maximum sensing distance and high operating frequency, making it suitable for both general-purpose metal detection and faster industrial sensing applications.
IO-Link functionality adds flexible configuration capabilities beyond those of a conventional fixed-output proximity switch. The ICB30S30N22A2IO allows sensing distance, output type and switching function to be configured, while additional IO-Link functions support intelligent monitoring and diagnostics within compatible automation systems.
Typical Applications
- Industrial machinery position and presence detection.
- Conveyor and material handling systems.
- Metal component detection and counting.
- Automated assembly and production lines.
- Rotational speed monitoring.
- Packaging and processing machinery.
- PLC and IO-Link enabled automation systems.
- OEM machine building and factory automation equipment.
