Why Choose the Carlo Gavazzi ICS05S23F08A2PC Inductive Proximity Sensor?

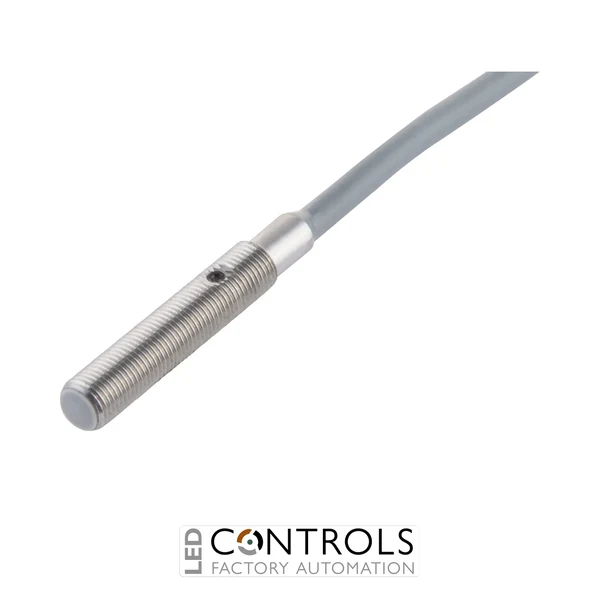

The Carlo Gavazzi ICS05S23F08A2PC is a miniature M5 inductive proximity sensor designed for precise, non-contact detection of metallic targets in industrial machinery and automation systems. As part of the Carlo Gavazzi ICS series, it combines a compact short-body design with a rugged stainless steel housing and a PNP normally closed (NC) output.
With a rated operating distance of 0.8 mm and a flush-mountable sensing arrangement, the ICS05S23F08A2PC is particularly suited to applications where installation space is limited and accurate metal detection is required. Its miniature M5 threaded barrel provides secure mounting in compact mechanisms, robotic equipment, tooling systems and automated machinery.
The sensor operates from a 10–30 V DC supply, supports output currents up to 100 mA and provides a maximum switching frequency of 6 kHz for rapid target detection. A 2 m integral cable, IP67 protection and an operating temperature range of -25 to +70 °C support reliable use in demanding industrial environments.
Key Advantages
- Miniature M5 inductive sensor ideal for space-constrained installations.
- 0.8 mm rated operating distance for precise metallic target detection.
- PNP normally closed (NC) output for compatible PLC and machine-control circuits.
- Flush-mountable design enables compact integration into suitable metal structures.
- High 6 kHz maximum switching frequency supports fast-moving sensing applications.
- Robust stainless steel housing provides industrial durability.
- 2 m integral cable enables straightforward electrical connection.
- IP67 protection supports reliable operation in demanding industrial environments.
Key Features
- Carlo Gavazzi ICS series inductive proximity sensor.
- M5 × 0.5 cylindrical threaded housing.
- Short-body construction.
- 0.8 mm rated operating distance.
- Flush-mountable sensing design.
- PNP normally closed (NC) output.
- Three-wire DC operation.
- 10–30 V DC supply voltage.
- Maximum output current of 100 mA.
- Maximum switching frequency of 6 kHz.
- 2 m cable connection.
- LED switching indication.
- IP67 protection rating.
Compact High-Speed Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without physical contact by monitoring changes in an electromagnetic field at the sensing face. This contactless operating principle helps minimise mechanical wear while providing accurate and repeatable position or presence feedback for automated machinery and industrial control systems.
The Carlo Gavazzi ICS05S23F08A2PC combines its miniature M5 housing with a 0.8 mm sensing distance and high 6 kHz switching frequency. These characteristics make it particularly useful for compact mechanisms, robotic positioning, tooling applications and other automated processes where both installation space and response speed are important.
Typical Applications
- Compact industrial machinery and automation equipment.
- Robotic position and end-of-travel sensing.
- Tool selection and tooling detection systems.
- Control and monitoring of small mechanical mechanisms.
- High-speed metallic component detection and counting.
- Automated assembly and production equipment.
- Machine positioning and presence detection.
- OEM machinery and factory automation systems.
