Why Choose the Carlo Gavazzi ICS05S23F15A2IO IO-Link Inductive Proximity Sensor?

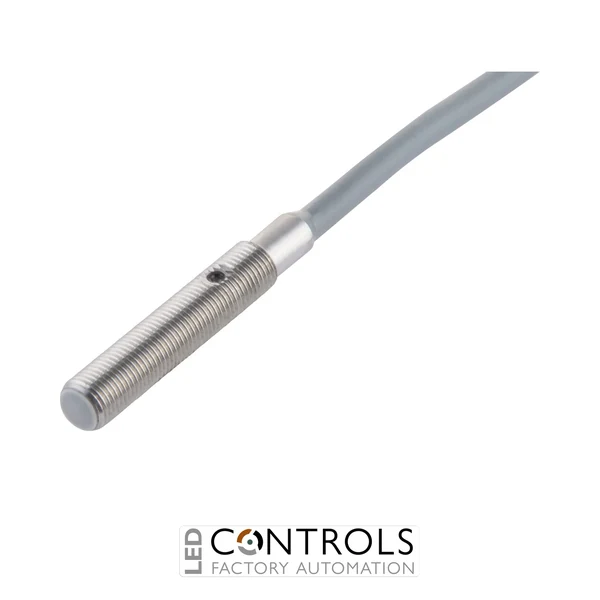

The Carlo Gavazzi ICS05S23F15A2IO is a miniature M5 IO-Link inductive proximity sensor designed for precise, non-contact detection of metallic objects in compact industrial machinery and automation systems. As part of the advanced Carlo Gavazzi ICS05 series, it combines a short stainless steel threaded housing with configurable sensing and output functions, making it particularly suitable for intelligent machine automation where installation space is limited.
This sensor provides a 1.5 mm rated operating distance with flush mounting capability and supports IO-Link communication for advanced configuration and diagnostics. Its electrical switching output can be configured as NPN, PNP or push-pull and as normally open or normally closed, providing considerable flexibility when integrating the sensor with PLCs, IO-Link masters and industrial control systems.
With a 10–30 V DC supply, maximum output current of 100 mA and maximum switching frequency of 4.5 kHz, the ICS05S23F15A2IO is suitable for rapid position, presence and rotational speed monitoring applications. The sensor features a 2 m integral cable, compact short-body construction and IP67 environmental protection for dependable operation in industrial environments.
Key Advantages
- Miniature M5 inductive proximity sensor with IO-Link for intelligent industrial automation.
- 1.5 mm rated sensing distance for precise metallic object detection.
- Flush-mountable short-body design enables installation in space-constrained machinery.
- Configurable NPN, PNP or push-pull output provides flexible control-system integration.
- Output function can be configured for normally open or normally closed operation.
- High 4.5 kHz maximum switching frequency supports rapid detection and rotational speed monitoring.
- IO-Link communication enables remote parameter configuration and intelligent sensor functionality.
Key Features
- Carlo Gavazzi ICS05 IO-Link inductive proximity sensor series.
- M5 cylindrical threaded stainless steel housing.
- 1.5 mm rated operating distance.
- Flush mounting configuration.
- IO-Link communication for configuration and sensor data.
- Configurable NPN, PNP or push-pull switching output.
- Programmable normally open (NO) or normally closed (NC) operation.
- 10–30 V DC operating voltage.
- Maximum output current of 100 mA.
- Maximum switching frequency of 4.5 kHz.
- 2 m integral cable connection.
- Configurable sensing parameters and timer functions through IO-Link.
- Temperature monitoring functionality for enhanced machine diagnostics.
- IP67 protection for demanding industrial environments.
Intelligent IO-Link Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICS05S23F15A2IO detect metallic targets without physical contact, helping eliminate mechanical wear while providing fast and repeatable position and presence sensing. Its high operating frequency also makes the sensor particularly useful for monitoring rapidly moving components and rotational speed.
IO-Link extends conventional proximity sensing by enabling digital communication between the sensor and an IO-Link master. The ICS05S23F15A2IO can be configured for different switching output modes and operating parameters, allowing machine builders to adapt sensor behaviour to specific applications while gaining access to additional diagnostic and process information.
Typical Applications
- Compact industrial machinery and automation equipment.
- Precision metal object presence and position detection.
- Rotational speed monitoring.
- Automated assembly and production equipment.
- Machine tools and small mechanical systems.
- High-speed counting and detection applications.
- Condition and temperature monitoring applications.
- PLC and IO-Link controlled industrial automation systems.
