Why Choose the Carlo Gavazzi ICS05S23F15M5PO Inductive Proximity Sensor?

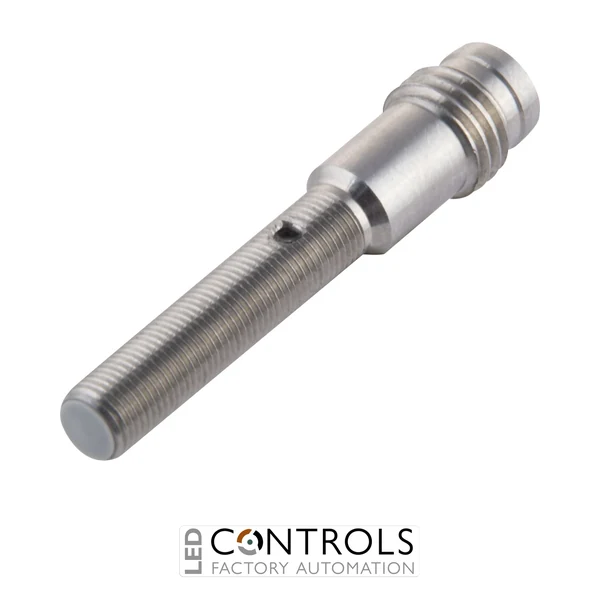

The Carlo Gavazzi ICS05S23F15M5PO is a compact M5 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICS series, this short-body sensor combines a stainless-steel cylindrical threaded housing with a 1.5 mm rated operating distance, providing extended sensing performance in an exceptionally compact format.
The ICS05S23F15M5PO features a PNP normally open (NO), 3-wire output and operates from a 10–30 V DC supply. Its flush-mountable construction enables the sensing face to be integrated into surrounding metal, while the M8 connector provides a convenient detachable electrical connection for installation, maintenance and sensor replacement.
With a maximum output current of 100 mA, maximum switching frequency of 4.5 kHz and an IP67 protection rating, the ICS05S23F15M5PO delivers fast, dependable sensing in demanding automation applications. Its short M5 body is particularly suited to compact tooling, assembly equipment and machinery where installation space is restricted.
Key Advantages
- Compact M5 short-body inductive proximity sensor for restricted installation spaces.
- 1.5 mm rated operating distance provides extended sensing performance in a small M5 format.
- PNP normally open (NO) output for integration with industrial control systems.
- Flush-mountable construction enables installation within surrounding metal.
- M8 connector supports convenient installation, maintenance and replacement.
- Fast switching performance up to 4.5 kHz.
- Robust stainless-steel housing with IP67 protection.
Key Features
- Carlo Gavazzi ICS series inductive proximity sensor.
- M5 cylindrical threaded housing.
- 1.5 mm rated operating distance (Sn).
- PNP normally open (NO), 3-wire output.
- 10–30 V DC operating supply.
- Maximum output current of 100 mA.
- Maximum switching frequency of 4.5 kHz.
- M8 connector electrical connection.
- Flush-mountable short-body construction.
- Stainless-steel sensor housing.
- Yellow LED output indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Inductive Sensing for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring mechanical contact between the sensor and the object being monitored. This non-contact operating principle helps reduce mechanical wear while providing repeatable position, presence and movement detection in automated machinery and production equipment.
The Carlo Gavazzi ICS05S23F15M5PO combines an extended 1.5 mm sensing distance with a compact M5 short-body design. Its flush mounting capability, fast switching response and detachable M8 connection make it particularly effective for precision machinery and automation systems where both installation space and reliable detection performance are important.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Automated assembly and production equipment.
- Packaging and handling machinery.
- Compact tooling, fixtures and machine assemblies.
- Conveyor and material handling systems.
- Counting and high-speed detection applications.
- OEM machinery and industrial automation systems.
