Why Choose the Carlo Gavazzi ICS08L45F20M5IO IO-Link Inductive Proximity Sensor?

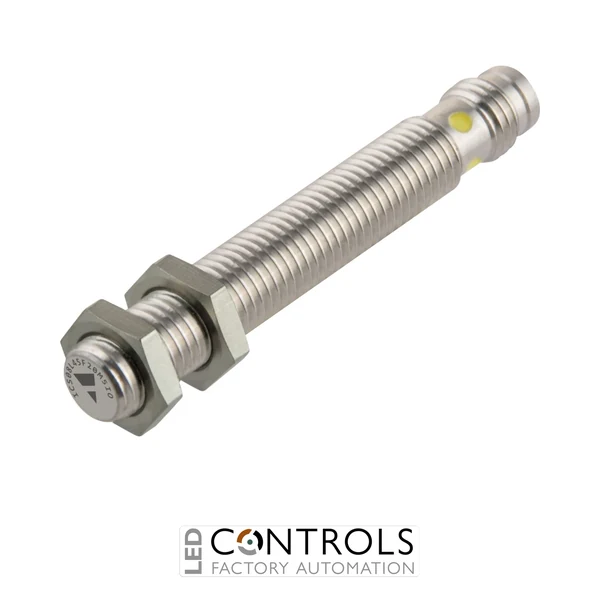

The Carlo Gavazzi ICS08L45F20M5IO is an advanced M8 IO-Link inductive proximity sensor designed for configurable, non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICS series, this long-body stainless-steel sensor provides a 2 mm rated operating distance and flush mounting for compact integration into machine structures.
Unlike a conventional fixed-output proximity switch, the ICS08L45F20M5IO incorporates IO-Link communication and offers configurable NPN, PNP or push-pull output with normally open or normally closed switching behaviour. This flexibility allows the sensor to be adapted to different control architectures while supporting digital parameterisation and diagnostic functions through an IO-Link system.
The ICS08L45F20M5IO operates from a 10–30 V DC supply, supports a maximum output current of 100 mA and provides a maximum switching frequency of 2 kHz. Its long M8 threaded body, detachable M8 connector, IP67 protection and operating temperature range from -25 to +80 °C make it a versatile sensing solution for modern industrial automation.
Key Advantages
- Advanced IO-Link inductive proximity sensor for connected industrial automation.
- Compact M8 long-body stainless-steel construction.
- 2 mm rated operating distance for reliable metallic target detection.
- Configurable NPN, PNP or push-pull output.
- Selectable normally open or normally closed switching function.
- IO-Link communication supports parameterisation and diagnostic capabilities.
- Flush-mountable design enables integration into surrounding metal.
- M8 connector simplifies installation, servicing and sensor replacement.
- Fast switching performance up to 2 kHz.
- Robust IP67 construction for demanding industrial environments.
Key Features
- Carlo Gavazzi ICS series inductive proximity sensor.
- IO-Link interface for intelligent sensor communication.
- M8 cylindrical threaded barrel.
- Long-body configuration.
- 2 mm rated operating distance (Sn).
- Configurable PNP / NPN / push-pull output.
- Configurable NO / NC output function.
- 10–30 V DC rated power supply.
- Maximum output current of 100 mA.
- Maximum switching frequency of 2 kHz.
- M8 connector electrical connection.
- Flush-mountable sensing configuration.
- Stainless-steel housing for industrial durability.
- -25 to +80 °C operating temperature.
- IP67 degree of protection.
Intelligent IO-Link Sensing for Industrial Automation
IO-Link enhances conventional proximity sensing by providing digital communication between intelligent field devices and the automation system. In addition to detecting metallic targets without physical contact, the Carlo Gavazzi ICS08L45F20M5IO can be configured for different output modes and switching functions, helping machine builders standardise sensor selection and adapt sensing behaviour to individual applications.
The sensor's combination of a compact M8 format, 2 mm rated sensing distance, high-speed operation and configurable IO-Link functionality makes it particularly suitable for sophisticated machinery where reliable detection, flexible parameterisation and sensor diagnostics can improve installation and maintenance efficiency.
Typical Applications
- Industrial machine position and presence sensing.
- Smart factory and IO-Link automation systems.
- Automated assembly and production machinery.
- Tool-selection and machine-tool applications.
- Rotational speed monitoring.
- Textile and manufacturing machinery.
- Packaging and processing equipment.
- Conveyor and material handling systems.
- High-speed metallic component detection.
- OEM machinery requiring configurable sensor outputs.
