Why Choose the Carlo Gavazzi ICS08L45F20M5NC Inductive Proximity Sensor?

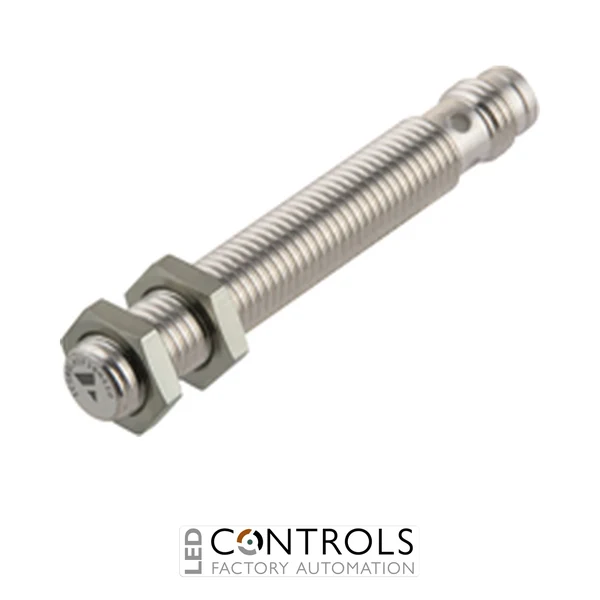

The Carlo Gavazzi ICS08L45F20M5NC is a compact and robust M8 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICS08 extended-range series, this long-body sensor combines a stainless-steel threaded housing with a 2 mm rated operating distance for accurate position and presence detection.
The ICS08L45F20M5NC features a 3-wire NPN normally closed (NC) output and operates from a 10–30 V DC supply. Its flush-mountable construction allows the sensing face to be installed within surrounding metal, while the integral M8 connector provides a compact detachable electrical connection for straightforward installation, maintenance and replacement.
With a maximum output current of 100 mA, switching frequency up to 2 kHz and an IP67 protection rating, the ICS08L45F20M5NC provides dependable switching performance in demanding industrial environments. Its long M8 stainless-steel body and wide -25 to +80 °C operating temperature range make it well suited to machine tooling, production equipment and OEM automation systems.
Key Advantages
- Compact M8 long-body inductive proximity sensor for industrial automation.
- 2 mm rated operating distance for reliable metallic target detection.
- 3-wire NPN normally closed (NC) output for industrial control circuits.
- Flush-mountable design enables installation within surrounding metal.
- M8 connector simplifies installation, servicing and sensor replacement.
- 10–30 V DC supply range for integration with industrial control systems.
- Fast switching performance up to 2 kHz.
- Durable stainless-steel construction with IP67 protection.
Key Features
- Carlo Gavazzi ICS08 extended-range series.
- M8 cylindrical threaded housing.
- Long-body configuration.
- 2 mm rated operating distance (Sn).
- NPN normally closed (NC), 3-wire output.
- 10–30 V DC rated operating voltage.
- Maximum output current of 100 mA.
- Maximum switching frequency of 2 kHz.
- M8 connector electrical connection.
- Flush-mountable sensing configuration.
- Yellow LED switching indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Inductive Sensing for Industrial Automation
Inductive proximity sensors detect metallic objects without requiring physical contact between the sensor and the target. This non-contact operating principle helps reduce mechanical wear while providing repeatable position, presence and movement detection in automated machinery, production equipment and material handling systems.
The Carlo Gavazzi ICS08L45F20M5NC combines a compact M8 diameter with a 2 mm sensing distance, long stainless-steel housing and fast switching performance. Its flush mounting capability and detachable M8 connection make it particularly suitable for machine builders and automation engineers requiring reliable sensing in space-constrained industrial equipment.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Automated assembly and production machinery.
- Machine tooling and fixtures.
- Packaging and processing equipment.
- Conveyor and material handling systems.
- Counting and high-speed detection applications.
- Manufacturing and factory automation.
- OEM machinery and industrial control systems.
