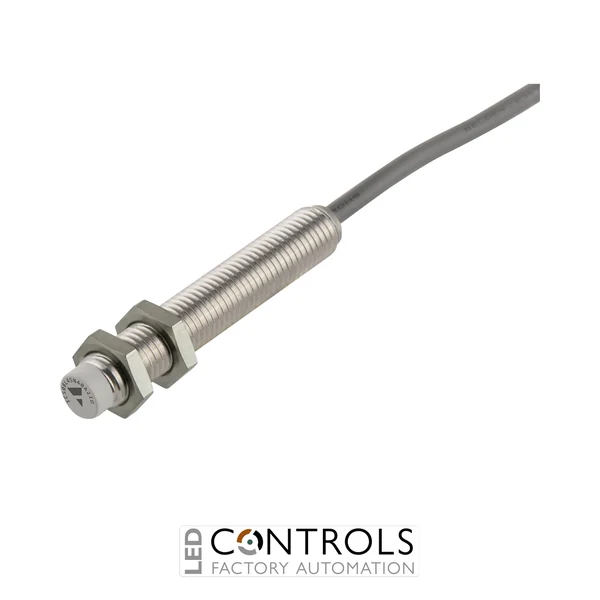

Why Choose the Carlo Gavazzi ICS08L45N02NC Inductive Proximity Sensor?
The Carlo Gavazzi ICS08L45N02NC is a robust 3-wire M8 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICS08 series, it combines a compact stainless steel threaded housing with long-body construction for dependable position and presence sensing in demanding industrial applications.
This sensor provides a 2 mm rated operating distance and is designed for non-flush mounting. Its NPN normally closed (NC) output provides dependable solid-state switching for compatible PLCs, machine controllers and industrial automation equipment, while the integral cable provides a straightforward connection for permanent machine installations.
With a 10–36 V DC supply, maximum output current of 200 mA and maximum switching frequency of 2 kHz, the ICS08L45N02NC is suitable for fast position, presence and metal object detection. Its 2 m cable, stainless steel construction and IP67 protection rating provide dependable performance across an operating temperature range of -25 to +80°C.
Key Advantages
- Compact 3-wire M8 inductive proximity sensor for non-contact metal detection.
- 2 mm rated sensing distance for reliable position and presence detection.
- Non-flush mounting configuration for dependable industrial sensing.
- NPN normally closed output for compatible industrial PLC and control inputs.
- Fast 2 kHz maximum switching frequency supports rapid automation processes.
- 2 m integral cable provides a straightforward permanent wiring connection.
- Stainless steel housing with IP67 protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICS08 inductive proximity sensor series.
- M8 cylindrical threaded stainless steel housing.
- Long-body sensor design.
- 2 mm rated operating distance.
- Non-flush mounting configuration.
- 3-wire NPN normally closed (NC) output.
- 10–36 V DC rated operating voltage.
- Maximum output current of 200 mA at 50°C.
- Maximum switching frequency of 2 kHz.
- 2 m integral cable connection.
- Yellow LED switching indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 protection rating for industrial environments.
Reliable Non-Contact Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICS08L45N02NC detect metallic targets without requiring physical contact. This sensing principle provides accurate and repeatable position and presence detection while eliminating the mechanical wear associated with conventional contact switches, helping improve reliability in repetitive industrial processes.
The ICS08 series is designed for industrial automation equipment where compact dimensions, robust construction and fast switching are important. The ICS08L45N02NC combines a 2 mm sensing distance with a stainless steel M8 housing, non-flush mounting, NPN normally closed switching and an integral cable, making it suitable for machine building, production equipment and automated control systems.
Typical Applications
- Industrial machinery position and presence detection.
- Automated assembly and production equipment.
- Machine tools and manufacturing systems.
- Conveyors and material handling equipment.
- Metal component detection and counting.
- End-position and machine movement monitoring.
- High-speed industrial detection applications.
- PLC-controlled industrial automation systems.
