Why Choose the Carlo Gavazzi ICS08L45N40M5IO IO-Link Inductive Proximity Sensor?

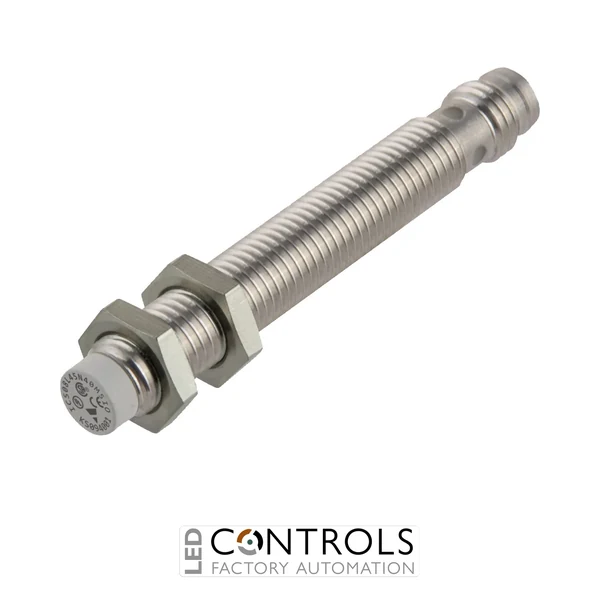

The Carlo Gavazzi ICS08L45N40M5IO is a long-body M8 IO-Link inductive proximity sensor designed for intelligent, non-contact detection of metallic targets in industrial machinery and automation systems. Its stainless steel threaded housing combines a compact M8 diameter with an extended 4 mm rated operating distance and convenient M8 plug connection.
Designed for non-flush mounting, the ICS08L45N40M5IO provides a configurable sensing distance of 2 or 4 mm, with 4 mm as the factory setting. Its electrical output is also configurable as PNP, NPN or push-pull with normally open or normally closed operation, providing considerable flexibility when integrating the sensor into different machine-control architectures.
Integrated IO-Link communication enables sensor configuration and access to intelligent device functions through compatible IO-Link systems. The sensor operates from a 10–30 V DC supply, supports output currents up to 100 mA, switches at frequencies up to 2 kHz and provides IP67 protection for dependable industrial use.
Key Advantages
- Integrated IO-Link communication for intelligent sensor configuration and integration.
- Compact M8 stainless steel housing for space-constrained machinery.
- Configurable 2 or 4 mm sensing distance with a factory setting of 4 mm.
- Configurable PNP, NPN or push-pull output for flexible control-system compatibility.
- Selectable normally open or normally closed switching behaviour.
- Non-flush mounting provides increased sensing range from the compact M8 format.
- Fast 2 kHz maximum switching frequency supports rapid target detection.
- M8 plug connection simplifies installation, maintenance and sensor replacement.
- IP67 protection supports reliable operation in industrial environments.
Key Features
- Carlo Gavazzi ICS08 series inductive proximity sensor.
- M8 cylindrical threaded housing.
- Long-body construction.
- Stainless steel housing.
- 4 mm factory-set rated operating distance.
- Configurable sensing distance of 2 or 4 mm.
- Non-flush mounting configuration.
- Configurable NPN / PNP / push-pull output.
- Configurable NO / NC output function.
- IO-Link communication.
- 10–30 V DC operating supply.
- Maximum output current of 100 mA.
- Maximum switching frequency of 2 kHz.
- M8 plug connector.
- IP67 protection rating.
Configurable IO-Link Metal Detection for Smart Automation
Inductive proximity sensors detect metallic targets without physical contact by monitoring changes in an electromagnetic field generated at the sensing face. This contactless principle provides repeatable position and presence detection while avoiding mechanical contact at the sensing point, making inductive technology well suited to repetitive industrial automation processes.
The Carlo Gavazzi ICS08L45N40M5IO adds IO-Link communication and configurable sensing parameters to this proven detection principle. With selectable 2 or 4 mm sensing distance, configurable output behaviour and a maximum 2 kHz switching frequency, it provides a flexible sensing solution for smart machinery, high-speed detection and modern IO-Link enabled automation systems.
Typical Applications
- IO-Link enabled industrial machinery.
- Metallic component presence and position detection.
- Machine-tool and tool-selection systems.
- Rotational speed monitoring applications.
- Conveyor and material handling equipment.
- Automated assembly and production machinery.
- End-position and machine movement monitoring.
- OEM machinery and smart factory automation systems.
