Why Choose the Carlo Gavazzi ICS08L45N40M5PC Inductive Proximity Sensor?

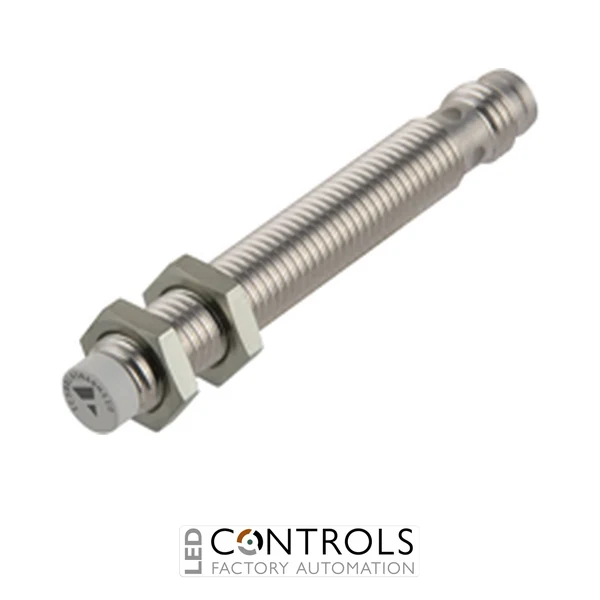

The Carlo Gavazzi ICS08L45N40M5PC is a compact 3-wire M8 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICS08 extended-range series, it combines a robust stainless steel threaded housing with long-body construction and increased sensing distance for demanding industrial applications.
This sensor provides a 4 mm rated operating distance and is designed for non-flush mounting. Its PNP normally closed (NC) output provides dependable solid-state switching for compatible PLCs, machine controllers and industrial automation equipment, while the M8 plug connector enables convenient installation, servicing and sensor replacement.
With a 10–30 V DC rated operating voltage, maximum output current of 100 mA and maximum switching frequency of 2 kHz, the ICS08L45N40M5PC is suitable for fast position, presence and metal object detection. Its stainless steel construction, M8 connector and IP67 protection rating support dependable operation across an industrial temperature range of -25 to +80°C.
Key Advantages
- Compact 3-wire M8 inductive proximity sensor for non-contact metal detection.
- 4 mm extended sensing distance provides increased detection range in a compact M8 format.
- Non-flush mounting configuration for extended-range industrial sensing.
- PNP normally closed output for compatible industrial PLC and control inputs.
- Fast 2 kHz maximum switching frequency supports rapid automation processes.
- M8 plug connector simplifies installation, servicing and sensor replacement.
- Stainless steel housing with IP67 protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICS08 extended-range inductive proximity sensor series.
- M8 cylindrical threaded stainless steel housing.
- Long-body sensor design.
- 4 mm rated operating distance.
- Non-flush mounting configuration.
- 3-wire PNP normally closed (NC) output.
- 10–30 V DC rated operating voltage.
- Maximum output current of 100 mA.
- Maximum switching frequency of 2 kHz.
- M8 plug connector for convenient electrical connection.
- Maximum voltage drop of 1.2 V DC at 100 mA.
- Yellow LED switching indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 protection rating for industrial environments.
Extended-Range Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICS08L45N40M5PC detect metallic targets without requiring physical contact. This sensing principle provides accurate and repeatable position and presence detection while eliminating the mechanical wear associated with conventional contact switches, helping improve reliability in repetitive industrial processes.
The ICS08 extended-range design provides a 4 mm sensing distance from a compact M8 sensor body, making the ICS08L45N40M5PC particularly useful where a small sensor diameter and increased detection range are required. Its non-flush configuration, PNP normally closed switching and detachable M8 connection make it suitable for machine building, automated production equipment and industrial control applications.
Typical Applications
- Industrial machinery position and presence detection.
- Automated assembly and production equipment.
- Machine tools and manufacturing systems.
- Conveyors and material handling equipment.
- Metal component detection and counting.
- End-position and machine movement monitoring.
- High-speed industrial detection applications.
- PLC-controlled industrial automation systems.
