Why Choose the Carlo Gavazzi ICS08S30F20A2PO Inductive Proximity Sensor?

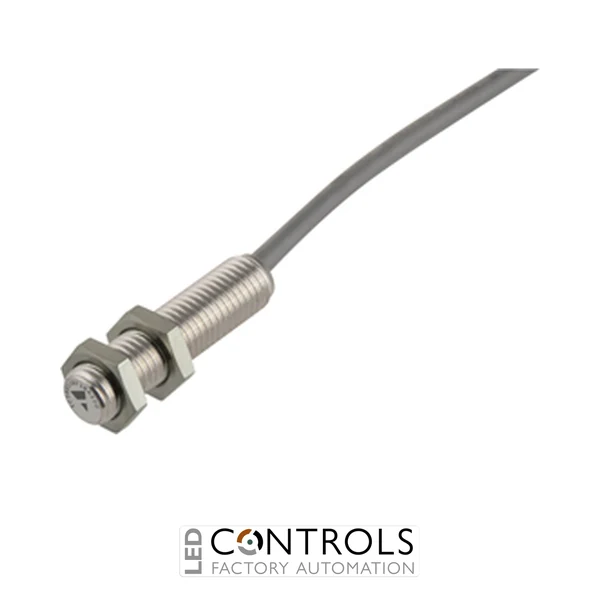

The Carlo Gavazzi ICS08S30F20A2PO is a compact M8 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi ICS08 extended-range series, it combines a short stainless-steel threaded housing with flush mounting, making it particularly suitable for machinery where installation space is limited.
This three-wire DC sensor features a PNP normally open (NO) output and a rated sensing distance of 2 mm. Its inductive sensing principle detects metal without physical contact, helping reduce mechanical wear while providing dependable switching for position detection, component presence monitoring, machine sequencing and other repetitive automation tasks.
With a rated operating voltage of 10–30 V DC, output current up to 100 mA and switching frequency up to 2 kHz, the ICS08S30F20A2PO provides responsive performance for industrial control systems. An integral 2 m cable, stainless-steel housing, IP67 protection and an operating temperature range of -25 to +80 °C support reliable use in demanding industrial environments.
Key Advantages
- Compact M8 inductive proximity sensor for space-constrained machinery.
- 2 mm rated sensing distance for reliable non-contact metal detection.
- PNP normally open output for integration with compatible PLC and control inputs.
- Flush-mount construction enables convenient installation within surrounding metal.
- Fast switching frequency up to 2 kHz for responsive automated processes.
- Integral 2 m cable provides a straightforward wired connection.
- Durable stainless-steel housing for industrial environments.
- IP67 protection helps protect against dust and water ingress.
Key Features
- Carlo Gavazzi ICS08 extended-range series.
- M8 × 1 threaded cylindrical housing.
- Short-body design with compact M8 × 31 mm dimensions.
- 2 mm rated operating distance (Sn).
- PNP normally open (NO) switching output.
- Three-wire DC electrical configuration.
- 10–30 V DC rated operating voltage.
- Maximum output current of 100 mA.
- Maximum switching frequency of 2 kHz.
- 2 m cable electrical connection.
- Yellow LED switching indication.
- Short-circuit, reverse-polarity and transient protection.
Reliable Non-Contact Metal Detection for Industrial Automation
Inductive proximity sensors detect conductive metallic targets using an electromagnetic sensing field without requiring physical contact. This contact-free operating principle eliminates the mechanical actuation associated with conventional limit switches, helping reduce wear and supporting long-term operation in repetitive industrial sensing applications.
The ICS08S30F20A2PO combines a compact short M8 housing with a 2 mm extended sensing distance, flush mounting and PNP normally open switching. Its fast response, rugged stainless-steel construction and integrated electrical protection make it well suited to automated machinery, production equipment and industrial control systems.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial conveyors and material handling systems.
- Automated assembly and production machinery.
- Packaging and processing equipment.
- Counting and sequencing of metallic components.
- Machine tools and manufacturing equipment.
- PLC-controlled industrial automation systems.
