Why Choose the Carlo Gavazzi ICS08S30F20M5NC Inductive Proximity Sensor?

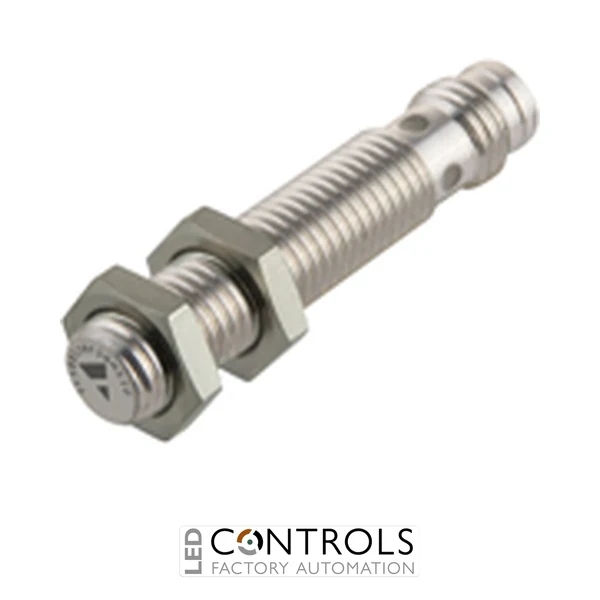

The Carlo Gavazzi ICS08S30F20M5NC is a compact 3-wire M8 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICS08 extended-range series, it combines a robust stainless steel threaded housing with short-body construction, making it particularly suitable for applications where installation space is limited.
This sensor provides a 2 mm rated operating distance with flush mounting, allowing the sensing face to be integrated into a suitable metal mounting surface. Its NPN normally closed (NC) output provides dependable solid-state switching for compatible PLCs, machine controllers and industrial automation equipment.
With a 10–30 V DC rated operating voltage, maximum output current of 100 mA and maximum switching frequency of 2 kHz, the ICS08S30F20M5NC is suitable for fast position, presence and metal object detection. Its M8 plug connector, stainless steel construction and IP67 protection rating support dependable operation across an industrial temperature range of -25 to +80°C.
Key Advantages
- Compact 3-wire M8 inductive proximity sensor for reliable non-contact metal detection.
- 2 mm extended sensing distance provides dependable detection in a compact M8 format.
- Short-body construction is ideal for machinery where installation space is restricted.
- Flush-mountable design enables convenient integration into suitable metal machine components.
- NPN normally closed output for compatible industrial PLC and control inputs.
- Fast 2 kHz maximum switching frequency supports rapid automation processes.
- M8 plug connector simplifies installation, maintenance and sensor replacement.
- Stainless steel housing with IP67 protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICS08 extended-range inductive proximity sensor series.
- M8 cylindrical threaded stainless steel housing.
- Short-body sensor design.
- 2 mm rated operating distance.
- Flush mounting configuration.
- 3-wire NPN normally closed (NC) output.
- 10–30 V DC rated operating voltage.
- Maximum output current of 100 mA.
- Maximum switching frequency of 2 kHz.
- M8 plug connector for convenient electrical connection.
- Maximum voltage drop of 1.2 V DC at 100 mA.
- Yellow LED switching indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 protection rating for industrial environments.
Compact Extended-Range Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICS08S30F20M5NC detect metallic targets without requiring physical contact. This sensing principle provides accurate and repeatable position and presence detection while eliminating the mechanical wear associated with conventional contact switches, helping improve reliability in repetitive industrial processes.
The ICS08S30F20M5NC combines a 2 mm sensing distance with a compact M8 × 40 mm short-body housing, making it particularly useful where mounting space is restricted. Its flush installation, NPN normally closed switching, fast 2 kHz switching frequency and detachable M8 connection make it suitable for machine building, automated production equipment and other space-constrained industrial automation applications.
Typical Applications
- Compact industrial machinery position and presence detection.
- Automated assembly and production equipment.
- Machine tools and manufacturing systems.
- Textile and packaging machinery.
- Conveyors and material handling equipment.
- Metal component detection and counting.
- End-position and machine movement monitoring.
- Space-constrained PLC-controlled industrial automation systems.
