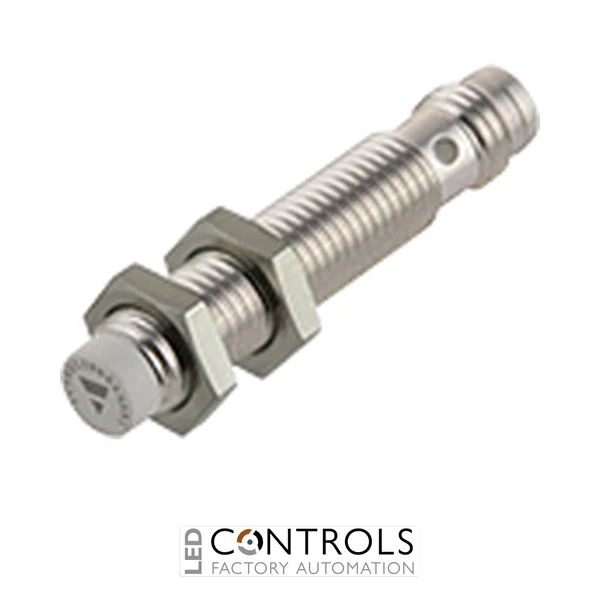

Why Choose the Carlo Gavazzi ICS08S30N04PAM5 Inductive Proximity Sensor?
The Carlo Gavazzi ICS08S30N04PAM5 is a compact 4-wire M8 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICS08 extended-range series, this short-body sensor combines an AISI 304 stainless-steel threaded housing with a 4 mm rated sensing distance.
The ICS08S30N04PAM5 provides PNP normally open + normally closed (NO+NC) outputs, allowing both switching functions to be available from a single sensor. Its non-flush mounting configuration provides the extended sensing range, while the integral M8 connector offers a compact detachable electrical connection for convenient installation, servicing and sensor replacement.
Operating from a 10–36 V DC supply, the ICS08S30N04PAM5 supports an output current up to 200 mA at 50 °C and a switching frequency of up to 2 kHz. Its IP67 protection, wide -25 to +80 °C operating temperature range and built-in electrical protection make it suitable for demanding industrial sensing applications.
Key Advantages
- Compact M8 short-body design for space-constrained industrial installations.
- Extended 4 mm rated sensing distance for reliable metallic target detection.
- 4-wire PNP NO+NC outputs provide normally open and normally closed switching functions.
- Non-flush mounting provides extended sensing performance.
- M8 connector simplifies installation, maintenance and sensor replacement.
- Wide 10–36 V DC operating range for industrial automation systems.
- Fast switching frequency up to 2 kHz.
- Durable AISI 304 stainless-steel housing with IP67 protection.
Key Features
- Carlo Gavazzi ICS08 extended-range series.
- M8 cylindrical threaded housing.
- Short-body configuration.
- 4 mm rated sensing distance (Sn).
- PNP normally open + normally closed (NO+NC) outputs.
- 4-wire DC configuration.
- 10–36 V DC rated operating voltage.
- Output current up to 200 mA at 50 °C.
- Maximum switching frequency of 2 kHz.
- M8 connector electrical connection.
- Non-flush sensing configuration.
- Yellow LED switching indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Extended-Range Inductive Sensing for Industrial Automation
Inductive proximity sensors detect metallic targets without physical contact, providing a wear-free method of monitoring component presence, machine position and movement. The 4 mm sensing distance of the ICS08S30N04PAM5 provides extended detection capability while retaining the compact dimensions of an M8 cylindrical sensor.
The combination of PNP NO+NC switching, a detachable M8 connection and a robust stainless-steel housing makes the Carlo Gavazzi ICS08S30N04PAM5 suitable for machine builders and automation engineers requiring flexible sensing in compact industrial equipment. Its 2 kHz switching capability also supports applications involving rapid target movement and repetitive machine cycles.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Automated assembly and production machinery.
- Machine tooling and fixtures.
- Packaging and processing equipment.
- Conveyor and material handling systems.
- Counting and high-speed detection applications.
- Factory automation and manufacturing equipment.
- OEM machinery requiring compact extended-range sensing.
