Why Choose the Carlo Gavazzi ICS30LN15NOM1-FB Inductive Proximity Sensor?

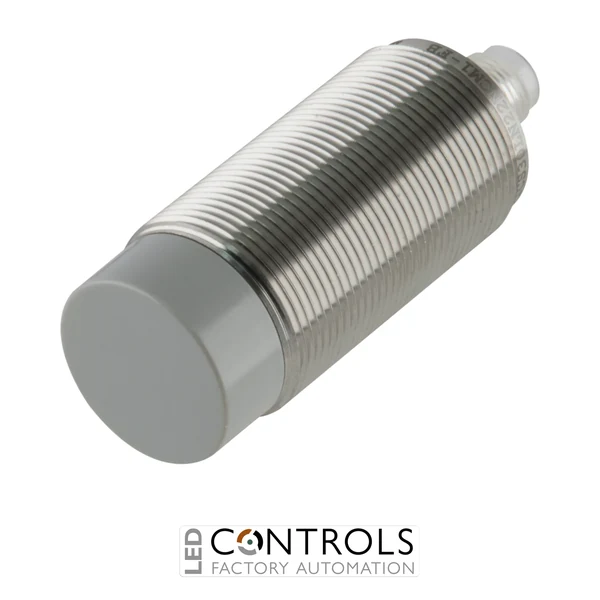

The Carlo Gavazzi ICS30LN15NOM1-FB is a heavy-duty M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in demanding industrial, food and beverage, and washdown applications. Part of the Carlo Gavazzi ICS30 washdown series, this three-wire DC sensor combines a long AISI 316L stainless-steel housing with high environmental resistance for machinery exposed to moisture, cleaning agents and intensive cleaning processes.
The ICS30LN15NOM1-FB features an NPN normally open (NO) output, a rated operating distance of 15 mm and a non-flush mounting configuration. Its unshielded sensing arrangement provides increased target clearance compared with flush-mounted designs, making it well suited to machine positioning, component presence detection, conveyors and automated process equipment.
Operating from a 10–36 V DC supply, the sensor supports an output current up to 200 mA and an operating frequency up to 1 kHz. Its M12 4-pin connector, AISI 316L stainless-steel body, IP67, IP68 and IP69K protection ratings and Ecolab approval make it particularly suitable for demanding industrial and hygiene-sensitive production environments.
Key Advantages
- 15 mm rated sensing distance provides generous clearance for reliable metallic target detection.
- Non-flush M30 design optimised for long-range industrial sensing applications.
- NPN normally open output for integration with compatible PLC and automation inputs.
- Durable AISI 316L stainless-steel housing provides excellent resistance in demanding environments.
- IP67, IP68 and IP69K protection supports wet and high-pressure washdown applications.
- Ecolab-approved construction makes the sensor particularly suitable for food, beverage and hygiene-sensitive machinery.
Key Features
- Carlo Gavazzi ICS30 washdown series inductive sensor.
- M30 cylindrical threaded AISI 316L stainless-steel housing.
- Long-body design for secure industrial mounting.
- 15 mm rated operating distance.
- Non-flush, unshielded mounting configuration.
- NPN normally open (NO) output.
- Three-wire DC operation.
- 10–36 V DC rated operational voltage.
- Maximum output current up to 200 mA at 50 °C.
- Maximum operating frequency of 1 kHz.
- M12 × 1, 4-pin connector for detachable wiring.
- Yellow LED output status indication.
- IP67, IP68 and IP69K ingress protection.
- Wide -40 to +85 °C operating temperature range.
- Short-circuit, reverse-polarity, transient and wire-break protection.
Reliable Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without physical contact by generating an electromagnetic sensing field. When a suitable metal object enters this field, the sensor changes its output state, providing dependable position, presence and process feedback without the mechanical wear associated with conventional contact switches.
The ICS30LN15NOM1-FB combines a substantial 15 mm sensing distance with corrosion-resistant AISI 316L stainless-steel construction and high ingress protection. Its robust design makes it particularly effective for machinery exposed to water, cleaning agents and regular washdown procedures, while the NPN normally open output supports straightforward integration with compatible PLCs and industrial automation controllers.
Typical Applications
- Food and beverage processing machinery.
- Washdown and hygiene-sensitive production environments.
- Packaging, filling and bottling equipment.
- Industrial conveyors and material handling systems.
- Machine position and metallic component detection.
- Automated manufacturing, counting and positioning systems.
