Why Choose the Carlo Gavazzi ICS30SN15PCM1-FB Inductive Proximity Sensor?

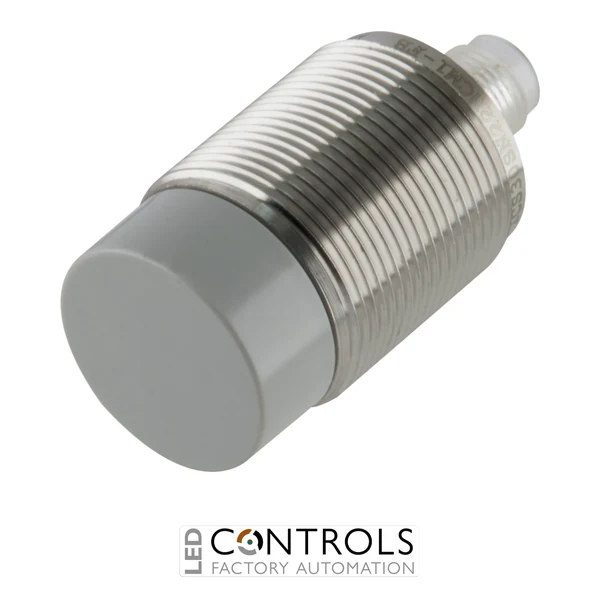

The Carlo Gavazzi ICS30SN15PCM1-FB is a robust M30 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation, machine building and food and beverage applications. Part of the Carlo Gavazzi ICS30 washdown series, it combines a compact short-body design with an AISI 316L stainless-steel housing, a 15 mm sensing distance and non-flush mounting.
This three-wire DC sensor features a PNP normally closed (NC) output for integration with compatible PLCs and industrial control systems. Its inductive sensing principle detects conductive metallic objects without physical contact, helping minimise mechanical wear while providing dependable switching for position detection, component monitoring and machine sequencing.
With a rated operating voltage of 10–36 V DC, output current up to 200 mA at 50 °C and a switching frequency up to 1 kHz, the ICS30SN15PCM1-FB provides responsive performance for automated machinery. Its M12 × 1, 4-pin connector, IP67/IP68/IP69K protection, wide operating temperature range and ECOLAB-approved construction make it particularly suitable for machinery exposed to demanding cleaning and washdown processes.
Key Advantages
- 15 mm rated sensing distance for reliable non-contact metal detection.
- PNP normally closed output for compatible PLC and industrial control inputs.
- Non-flush mounting supports the specified sensing range.
- Short-body M30 design reduces required mounting depth compared with long-body versions.
- Fast switching frequency up to 1 kHz for responsive automation processes.
- Output current up to 200 mA at 50 °C.
- M12 plug connector simplifies installation, servicing and sensor replacement.
- AISI 316L stainless-steel housing provides excellent durability in demanding environments.
- IP67, IP68 and IP69K protection supports intensive industrial washdown.
- ECOLAB approval makes the sensor particularly suitable for food and beverage machinery.
Key Features
- Carlo Gavazzi ICS30 washdown series.
- M30 × 1.5 cylindrical threaded housing.
- Short-body construction.
- 15 mm rated operating distance (Sn).
- Standard-range non-flush configuration.
- PNP normally closed (NC) switching output.
- Three-wire DC electrical configuration.
- 10–36 V DC rated operating voltage.
- Maximum output current of 200 mA at 50 °C.
- Maximum switching frequency of 1 kHz.
- M12 × 1, 4-pin connector.
- AISI 316L stainless-steel housing.
- FDA-certified grey PPS sensing face.
- Yellow LED output indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 / IP68 / IP69K ingress protection.
The ICS30SN15PCM1-FB uses an electromagnetic sensing field to detect conductive metallic targets without requiring physical contact. This contact-free operating principle eliminates mechanical actuation at the sensing point, helping minimise wear while providing dependable detection for repetitive position, presence and machine-sequencing applications.
Its 15 mm non-flush sensing distance provides useful target clearance while the short 59.5 mm body supports installations where available mounting depth is limited. Combined with its AISI 316L stainless-steel housing, FDA-certified PPS sensing face, IP67/IP68/IP69K protection and ECOLAB approval, the ICS30SN15PCM1-FB is particularly well suited to hygienic machinery and industrial equipment exposed to frequent washdown procedures.
Typical Applications
- Food and beverage processing machinery.
- Washdown production and packaging equipment.
- Metal component presence and position detection.
- Conveyor and material handling systems.
- Automated filling, bottling and packaging machinery.
- Machine position and end-of-travel sensing.
- Hygienic processing and production equipment.
- PLC-controlled industrial automation systems.
