Why Choose the IMO IL1/AP-4A Inductive Proximity Sensor?

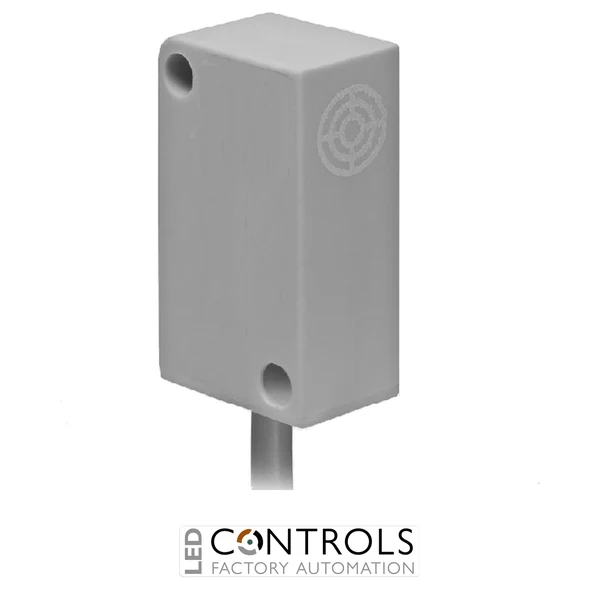

The IMO IL1/AP-4A is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machinery applications. Part of the IL1 miniature inductive sensor series, it combines a slim rectangular housing with a long sensing distance and a PNP normally open switching output.
Its compact cubic construction makes the IL1/AP-4A particularly suitable for machinery where installation space is limited. The sensor provides dependable metal detection without physical contact, helping reduce mechanical wear while supporting accurate position, presence and end-of-travel sensing.
With a nominal sensing distance of 6 mm, a 10–30 V DC supply and a PNP normally open output, the IL1/AP-4A is suitable for use with PLCs and industrial control systems. The unit is supplied with a 2 m PVC cable and features an IP67-rated housing for use in demanding industrial environments.
Key Advantages
- Compact inductive proximity sensor for non-contact metal detection.
- 6 mm nominal sensing distance for long-range detection in a miniature housing.
- PNP normally open output for straightforward PLC and control-system integration.
- 10–30 V DC operating voltage suitable for standard industrial automation systems.
- IP67 protection for reliable operation in demanding environments.
- Integrated electrical protection helps protect against short circuits, reverse polarity and inductive loads.
Key Features
- IMO IL1 miniature inductive sensor series.
- 6 mm nominal sensing distance.
- 0–4.8 mm operating distance.
- PNP normally open switching output.
- 10–30 V DC operating supply.
- Up to 300 mA load current.
- 3 kHz switching frequency.
- Yellow LED output-state indicator.
- Unshielded, non-flush mounting design.
- 2 m PVC cable connection.
- Compact rectangular PA housing.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic field at the sensing face. When a suitable metal object enters this field, the sensor changes its electrical output state without requiring physical contact with the target.
The IL1/AP-4A combines miniature dimensions with a relatively long sensing range, making it well suited to compact machines, production equipment and automated assemblies. Its fast switching frequency also supports applications involving rapidly moving components or high-speed position detection.
Typical Applications
- Machine position and presence detection.
- Industrial automation and PLC systems.
- Conveyor and material handling equipment.
- Packaging and production machinery.
- Metal component detection.
- End-of-travel and position sensing.
- Assembly and manufacturing equipment.
- Compact OEM machinery.
