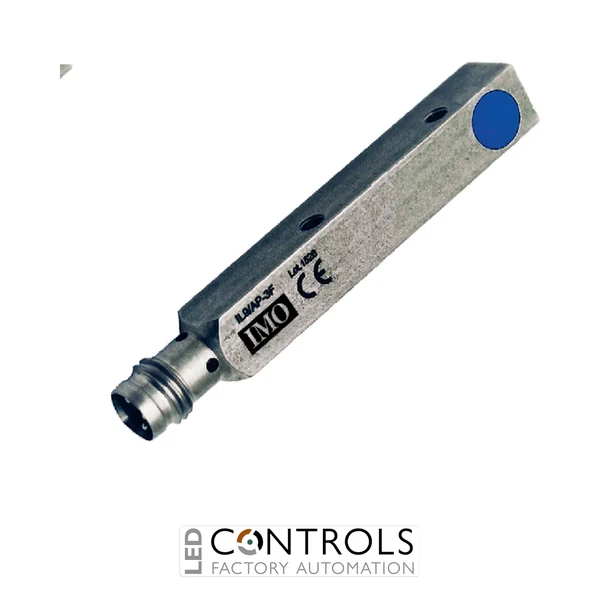

Why Choose the IMO IL8/AP-3F Inductive Proximity Sensor?
The IMO IL8/AP-3F is a compact and robust inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the IMO IL8 miniature cubic inductive sensor series, it features an exceptionally slim 8 × 8 mm stainless steel housing for installation where available space is limited.
The IL8/AP-3F uses a top-positioned sensing head and shielded construction, allowing flush mounting into surrounding metalwork. Its solid-state inductive sensing technology provides dependable position and presence detection without mechanical contact, helping reduce wear and maintenance requirements in automated equipment.
With a nominal sensing distance of 2 mm, a 10–30 V DC supply and a PNP normally open output, the IL8/AP-3F is suitable for integration with compatible PLCs and industrial control systems. A 3-pin M8 plug connection, IP67 protection and AISI 303 stainless steel housing make it particularly well suited to compact industrial machinery.
Key Advantages
- Miniature 8 × 8 mm cubic inductive sensor for space-restricted machinery.
- 2 mm nominal sensing distance for reliable non-contact metal detection.
- PNP normally open output for straightforward integration with compatible PLCs and control systems.
- 10–30 V DC operating voltage suitable for standard industrial automation supplies.
- Shielded design enables flush mounting into surrounding metalwork.
- Durable AISI 303 stainless steel housing for demanding industrial applications.
- IP67 protection for dependable operation in industrial environments.
- Fast switching capability supports high-speed automation and detection applications.
Key Features
- IMO IL8 miniature cubic inductive sensor series.
- 8 × 8 × 59 mm compact housing.
- 2 mm nominal sensing distance.
- 0–1.62 mm operating distance.
- PNP normally open (NO) switching output.
- 10–30 V DC operating supply.
- Up to 200 mA output current.
- Up to 5 kHz switching frequency.
- Top-positioned sensing face.
- Shielded construction for flush installation.
- 3-pin M8 plug connection.
- Yellow LED output-state indicator.
- Short-circuit protection with automatic reset.
- Reverse-polarity and inductive-load protection.
Reliable Metal Detection for Compact Machinery
Inductive proximity sensors such as the IMO IL8/AP-3F detect metallic targets by generating an electromagnetic field at the sensing face. When a suitable metal object enters this field, the sensor changes its electrical output state without requiring physical contact, providing reliable position and presence detection while avoiding the mechanical wear associated with conventional contact switches.
The IL8 series is designed for applications requiring a miniature sensor profile. Its 8 × 8 mm cross-section, top sensing face, shielded mounting arrangement and fast switching capability make the IL8/AP-3F particularly useful in compact automated assemblies, machine tooling and high-speed production equipment.
Typical Applications
- Industrial machinery position sensing.
- PLC-controlled automation systems.
- Compact assembly and production equipment.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Metal component presence detection.
- End-of-travel and position sensing.
- High-speed counting and detection applications.
- OEM machinery and automated production systems.
