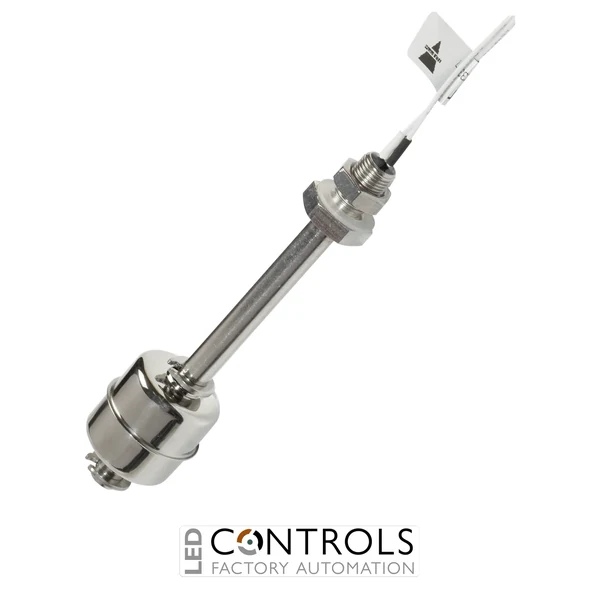

Why Choose the Carlo Gavazzi ILMM5S2 Magnetic Level Sensor?
The Carlo Gavazzi ILMM5S2 is a compact and durable magnetic liquid level sensor designed for dependable level monitoring in tanks, vessels and industrial process equipment. Part of the Carlo Gavazzi ILMM series, it uses a float-operated magnetic reed contact to provide reliable switching without requiring complex electronic sensing circuitry.
The ILMM5S2 features a normally-closed (NC) reed contact output housed in corrosion-resistant stainless steel. Its cylindrical construction and stainless-steel float make it suitable for demanding liquid-level applications, while the 0.3 m XLPE cable provides a straightforward electrical connection to control, alarm and monitoring circuits.
With a maximum switching voltage of 240 V AC / 220 V DC, maximum switching current of 500 mA and maximum switching power of 50 VA, the ILMM5S2 can interface directly with suitably rated industrial control circuits. Its wide -20 to +120 °C operating temperature range and IP68 protection make it a robust solution for industrial liquid-level monitoring.
Key Advantages
- Reliable magnetic liquid-level detection using proven reed-switch technology.
- Normally-closed (NC) output for straightforward integration with control and alarm circuits.
- Durable stainless-steel construction for industrial liquid applications.
- Maximum switching voltage of 240 V AC / 220 V DC.
- Maximum switching current of 500 mA.
- Wide -20 to +120 °C operating temperature range.
- IP68 protection for demanding liquid-level sensing environments.
- Simple float-operated design provides dependable switching with minimal complexity.
Key Features
- Carlo Gavazzi ILMM series magnetic level sensor.
- Normally-closed reed-switch output.
- Cylindrical threaded-barrel construction.
- Stainless-steel housing for industrial durability.
- 0.3 m cable connection.
- Maximum switching voltage: 240 V AC / 220 V DC.
- Maximum switching current: 500 mA.
- Maximum switching power: 50 VA.
- -20 to +120 °C operating temperature.
- IP68 degree of protection.
- Compact magnetic float principle for direct liquid-level detection.
- Designed for tank, vessel and process level monitoring.
Reliable Magnetic Liquid-Level Monitoring
Magnetic level sensors use the movement of a float to actuate an internal reed contact as the liquid level changes. This simple contact-based operating principle provides repeatable level switching without requiring physical electrical contact between the float mechanism and the external control circuit.
The ILMM5S2 combines this proven sensing principle with stainless-steel construction and a wide operating temperature range. Its normally-closed output can be incorporated into suitable control, alarm and monitoring circuits for applications requiring dependable indication when a predetermined liquid level is reached.
Typical Applications
- Industrial tank liquid-level monitoring.
- Process vessels and storage containers.
- High- and low-level alarm circuits.
- Food-processing equipment.
- Chemical and process industry equipment.
- Pump and fluid-management systems.
- Industrial machinery and automation systems.
- Liquid presence and level-control applications.
