Why Choose the Carlo Gavazzi ILMP5 Magnetic Level Sensor?

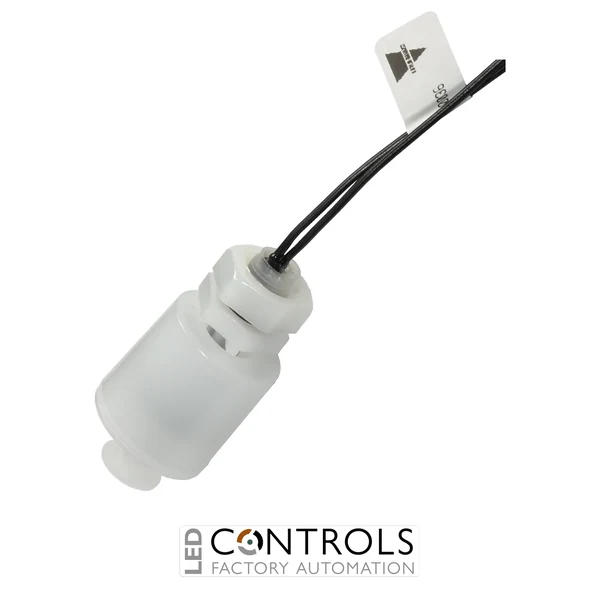

The Carlo Gavazzi ILMP5 is a compact magnetic level sensor designed for reliable liquid level detection in industrial tanks, reservoirs and process control systems. Part of the Carlo Gavazzi ILMP series, this miniature float-operated sensor uses a reed contact switching system with a polypropylene housing and selectable normally open or normally closed output operation.
The ILMP5 provides dependable liquid level monitoring using a magnetic float mechanism. Its extremely compact design, small Ø25 mm polypropylene float and reversible output function make it suitable for applications where space is limited and reliable level indication is required.
Designed for industrial fluid monitoring applications, the ILMP5 features a 0.3 m PVC cable connection, IP68 protection and reed contact switching capable of handling up to 240 V AC / 200 V DC. The sensor is suitable for vertical or horizontal mounting depending on installation requirements.
Key Advantages
- Reliable magnetic float level sensing technology for liquid monitoring applications.
- NO or NC reed contact output for flexible control integration.
- Compact polypropylene construction for space-saving installations.
- Ø25 mm float design suitable for small tanks and reservoirs.
- IP68 protection rating for dependable operation in demanding environments.
- Reversible output function by sensor housing orientation change.
Key Features
- Carlo Gavazzi ILMP magnetic level sensor series.
- Reed contact switching technology.
- Normally open / normally closed output function.
- Non-toxic polypropylene cylindrical housing.
- 0.3 m PVC cable connection.
- Maximum switching voltage of 240 V AC / 200 V DC.
- Maximum switching current of 0.5 A.
- Maximum switching power of 50 VA.
- Vertical or horizontal mounting capability.
Reliable Liquid Level Monitoring for Industrial Systems
Magnetic level sensors such as the Carlo Gavazzi ILMP5 provide simple and dependable liquid level detection by using a float-mounted magnet to operate an internal reed contact. This contactless switching method delivers long service life with minimal maintenance requirements.
The ILMP series is designed for industrial applications requiring compact dimensions, reliable electrical switching and resistance to challenging operating conditions. Its small form factor makes it suitable for installation in tanks, containers and process equipment where conventional level sensors may not fit.
Typical Applications
- Liquid storage tanks and reservoirs.
- Pumps and fluid handling systems.
- Industrial process monitoring equipment.
- Water treatment systems.
- Machine coolant and lubrication systems.
- OEM equipment level control applications.
