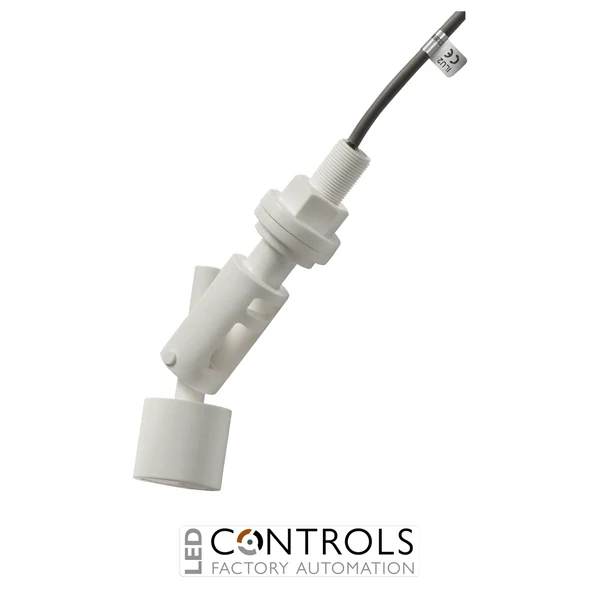

Why Choose the Carlo Gavazzi ILU2 Magnetic Level Sensor?
The Carlo Gavazzi ILU2 is a reliable magnetic liquid level sensor designed for accurate point-level detection in tanks, reservoirs and industrial fluid handling systems. Part of the Carlo Gavazzi ILU level sensor series, this float-operated sensor uses a reed contact switching system with a cylindrical polypropylene housing and normally open output operation for dependable automation control.
The ILU2 provides simple and effective liquid level monitoring through a magnetic float mechanism. Its robust cylindrical plastic housing, compact design and normally open reed contact output make it suitable for applications requiring reliable level indication and control.
Designed for industrial and food-related fluid applications, the ILU2 features a 0.5 m cable connection, IP68 protection and a reed contact capable of switching up to 250 V AC, 3 A and 100 VA.
Key Advantages
- Reliable magnetic float level sensing technology for liquid monitoring applications.
- Normally open reed contact output for straightforward control integration.
- Polypropylene cylindrical housing for durable industrial operation.
- IP68 protection rating for use in demanding environments.
- Compact design suitable for tanks, reservoirs and process equipment.
- Long service life through contactless magnetic switching operation.
Key Features
- Carlo Gavazzi ILU magnetic level sensor series.
- Float-operated magnetic reed switch technology.
- Normally open (NO) output function.
- Cylindrical polypropylene housing.
- 0.5 m cable connection.
- Ø45 mm float design.
- 250 V AC maximum switching voltage.
- 3 A maximum switching current.
- 100 VA maximum switching power.
- Suitable for horizontal mounting applications.
Reliable Liquid Level Monitoring for Industrial Systems
Magnetic level sensors such as the Carlo Gavazzi ILU2 provide a simple and dependable method of detecting liquid levels. A magnetic float follows the liquid surface and activates an internal reed contact, allowing reliable switching without mechanical wear.
The ILU series is designed for industrial automation and process applications where compact construction, reliable operation and easy installation are required. The ILU2 is also suitable for applications requiring materials compatible with food contact environments.
Typical Applications
- Industrial liquid storage tanks.
- Water and fluid treatment systems.
- Pumps and reservoir monitoring.
- Food and beverage processing equipment.
- Machine coolant and lubrication systems.
- OEM process equipment and automation systems.
