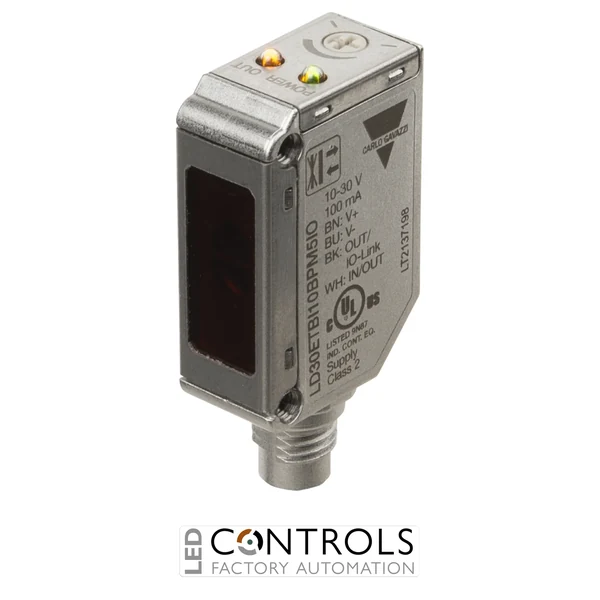

Why Choose the Carlo Gavazzi LD30ETBI10BPM5IO Laser Background Suppression Sensor?
The Carlo Gavazzi LD30ETBI10BPM5IO is an advanced laser photoelectric sensor designed for precise object detection using Time of Flight (ToF) technology with adjustable background suppression. Part of the Carlo Gavazzi LD30 IO-Link sensor series, this compact stainless steel sensor combines infrared laser sensing, intelligent communication and robust construction for demanding industrial automation applications.
The LD30ETBI10BPM5IO provides reliable diffuse reflective detection with a sensing range of up to 1,000 mm. Its infrared laser Class 1 light source and background suppression technology enable accurate detection of objects regardless of colour or surface characteristics, while IO-Link communication allows advanced configuration, diagnostics and process data access.
Designed for harsh industrial environments, this sensor features an AISI316L stainless steel housing, IP68/IP69K protection and ECOLAB approval. The compact rectangular design with an M8 4-pin plug connection makes it suitable for hygienic machinery, food processing equipment and modern automation systems.
Key Advantages
- Advanced Time of Flight (ToF) laser sensing technology for accurate object detection.
- Adjustable background suppression improves detection reliability on different surfaces.
- IO-Link communication enables smart parameterisation and diagnostics.
- AISI316L stainless steel housing for demanding industrial environments.
- IP68/IP69K protection rating suitable for cleaning and washdown applications.
- Compact sensor design for space-saving machine installation.
Key Features
- Carlo Gavazzi LD30 IO-Link laser sensor series.
- Diffuse reflective Time of Flight (ToF) detection.
- Infrared laser Class 1 light source, 940 nm.
- 1,000 mm sensing range.
- IO-Link 1.1 communication interface.
- Selectable NPN, PNP or Push-Pull outputs.
- Configurable normally open and normally closed switching functions.
- M8 4-pin plug connection.
- 10–30 V DC supply voltage.
- Integrated diagnostics and configurable sensing functions.
Reliable Laser Detection for Industrial Automation
Laser photoelectric sensors such as the Carlo Gavazzi LD30ETBI10BPM5IO provide precise object detection by measuring the flight time of emitted infrared laser light reflected from a target. This enables reliable sensing performance across different object colours, materials and surface finishes.
The LD30 IO-Link series supports intelligent automation through configurable parameters, diagnostic information and process data communication. This allows machine builders and automation engineers to optimise sensor performance and simplify integration into modern industrial networks.
Typical Applications
- Food and beverage processing machinery.
- Packaging and production equipment.
- Industrial automation systems.
- Robotics and material handling.
- Object presence and position detection.
- Hygienic environments requiring regular cleaning.
