Why Choose the Carlo Gavazzi MC88CH1O1CRM5 Safety Magnetic Sensor?

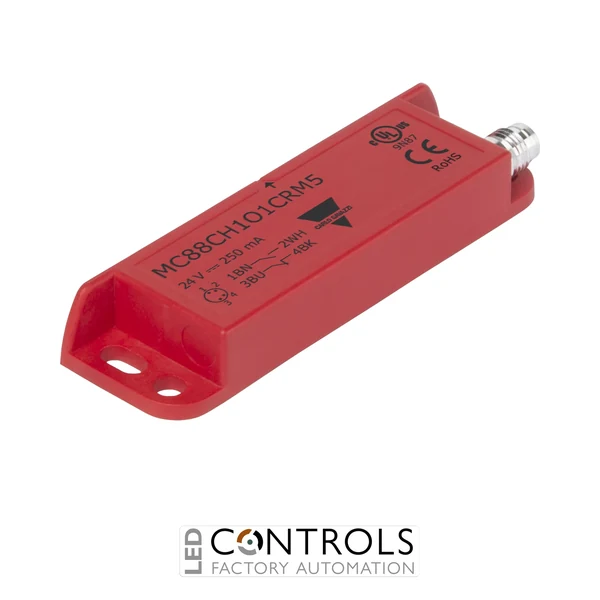

The Carlo Gavazzi MC88CH1O1CRM5 is a robust non-contact safety magnetic sensor designed for monitoring hinged, sliding and removable guards on industrial machinery. Part of the Carlo Gavazzi MC88C safety sensor series, this version features a right-hand cable exit arrangement, an integrated M8 connector and 1 normally open plus 1 normally closed (1NO+1NC) reed contact.
The MC88CH1O1CRM5 uses coded magnetic actuation to monitor the position of compatible machine guards without requiring direct mechanical contact between the sensor and actuator. Its rectangular plastic housing provides a compact yet durable solution for industrial safety applications, while the non-contact operating principle helps minimise mechanical wear during repeated guard movements.
Designed for demanding environments, the sensor provides IP69K protection and operates across a temperature range of -25 to +80 °C. Its dry reed contacts support a maximum switching voltage of 12/24 V AC/DC, maximum switching current of 250 mA and maximum switching power of 6 W.
Key Advantages
- Non-contact coded magnetic safety sensing reduces mechanical wear.
- 1NO+1NC reed contact configuration for compatible safety control circuits.
- Right-hand / right-exit configuration for corresponding machine guard layouts.
- Integrated M8 connector simplifies installation and replacement.
- IP69K protection rating supports demanding industrial environments.
- Wide -25 to +80 °C operating temperature range.
Key Features
- Carlo Gavazzi MC88C safety magnetic sensor series.
- Non-contact coded magnetic operating principle.
- 1NO + 1NC dry reed contacts.
- Right-exit sensor configuration.
- M8 integrated connector.
- 18 mm protected switch-on distance.
- 30 mm protected switch-off distance.
- 250 mA maximum switching current.
- 6 W maximum switching power.
- Rectangular plastic housing with IP69K protection.
Reliable Non-Contact Safety Guard Monitoring
Safety magnetic sensors monitor machine guards without requiring direct mechanical engagement between the sensor and actuator. When a monitored guard is opened or displaced, the change in magnetic actuation changes the reed contact state, allowing compatible safety control equipment to detect the condition and respond according to the machine's designed safety function.
The MC88CH1O1CRM5 combines 1NO+1NC switching, an integrated M8 connection and high environmental protection in a compact rectangular housing. It can be paired with the appropriate MC88 magnetic actuator to suit the required operating distance, making it a flexible solution for industrial machine guarding and safety interlocking applications.
Typical Applications
- Industrial machine guard monitoring.
- Hinged safety doors and access panels.
- Sliding and removable machine guards.
- Packaging and production machinery.
- Material handling and conveyor systems.
- Automated manufacturing cells.
- Industrial machine safety and interlocking systems.
