Why Choose the Carlo Gavazzi MOFR-M12-8AX ATEX Photoelectric Receiver?

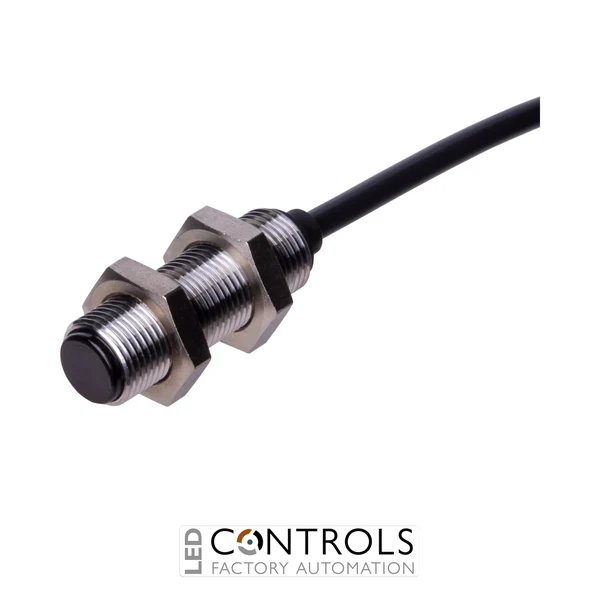

The Carlo Gavazzi MOFR-M12-8AX is an ATEX-approved through-beam photoelectric receiver designed for use with a separate amplifier in demanding industrial sensing applications. Its compact cylindrical M12 stainless steel and polycarbonate housing provides a durable sensing solution where reliable non-contact object detection and hazardous-area approval are required.
Designed as the receiver element of the Carlo Gavazzi MOF through-beam sensing system, the MOFR-M12-8AX detects modulated infrared light at 880 nm from a compatible transmitter. The receiver features a maximum ±8° optical angle, while sensing distance is determined by the corresponding emitter used in the system.
The MOFR-M12-8AX is powered through its compatible separate amplifier, with switching output and operating frequency also determined by the amplifier. Its IP66 / IP67 protection, -20 to +60 °C operating temperature and CE / ATEX approval make it particularly suitable for industrial environments involving dust, water, steam and applications where appropriately approved sensing equipment is required.
Key Advantages
- ATEX-approved photoelectric receiver for suitable hazardous-area sensing applications.
- Reliable through-beam detection for non-contact industrial object sensing.
- Maximum ±8° optical angle provides practical alignment with the corresponding emitter.
- Uses 880 nm modulated infrared light for dependable optical detection.
- Compact M12 stainless steel and polycarbonate housing combines durability with space-efficient installation.
- IP66 / IP67 environmental protection supports operation in wet, dusty and demanding conditions.
- Designed for use with S142, S143 and PAM series amplifiers for flexible system integration.
Key Features
- Carlo Gavazzi MOF series ATEX photoelectric receiver.
- Through-beam sensing principle.
- Designed for use with a separate amplifier.
- Maximum ±8° optical angle.
- 880 nm modulated infrared sensing.
- Rated operating voltage supplied by the associated amplifier.
- Switching output provided by the associated amplifier.
- Operating frequency determined by the selected amplifier.
- M12 cylindrical threaded housing.
- Stainless steel and polycarbonate construction.
- Cable electrical connection.
- IP66 / IP67 protection.
- CE and ATEX approved.
Reliable ATEX Photoelectric Detection for Industrial Machinery
Through-beam photoelectric systems use separate transmitter and receiver sensing heads positioned opposite one another. The MOFR-M12-8AX receives the infrared beam generated by the compatible emitter and works with a separate amplifier to provide the required switching signal. When an object interrupts the optical path, the system can reliably detect its presence without physical contact.
The separate-amplifier architecture keeps the sensing head compact while allowing signal processing and switching functions to be handled by the associated amplifier. Combined with its stainless steel M12 construction, IP66/IP67 environmental protection and ATEX approval, the MOFR-M12-8AX provides a robust solution for specialised industrial sensing installations.
Typical Applications
- Hazardous-area industrial object detection where the applicable ATEX approval is suitable.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- Production line presence and position detection.
- Industrial installations exposed to dust, water or steam.
- Automated machinery requiring compact separate-amplifier photoelectric sensing.
