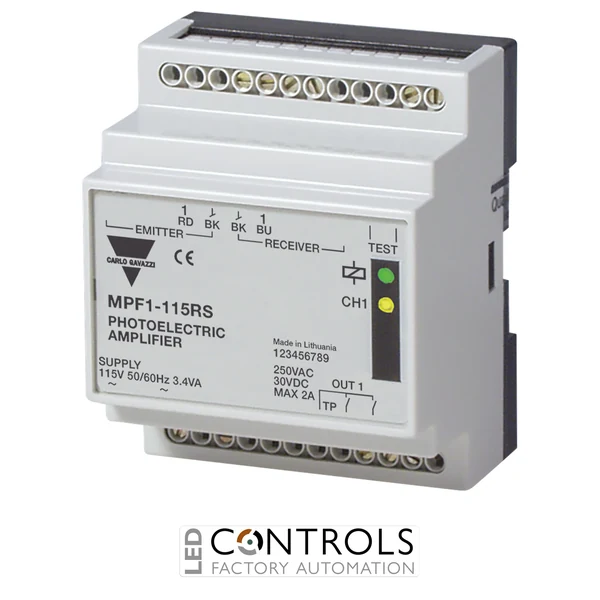

Why Choose the Carlo Gavazzi MPF1-115RS Photoelectric Amplifier?
The Carlo Gavazzi MPF1-115RS is a single-channel photoelectric amplifier designed for through-beam sensing systems used in industrial doors, gates, machinery and automation applications. As part of the Carlo Gavazzi MPF series, it provides the power, signal processing and relay switching required for compatible remote photoelectric transmitter and receiver heads.
This high-voltage amplifier operates from a 115 V AC ±15% supply and provides a robust relay output for connection to industrial control circuits. Its single-channel architecture makes it suitable for applications requiring one through-beam sensing pair, while terminal connections simplify integration with sensors, power and control wiring.
The MPF1-115RS supports compatible MPF through-beam sensors with sensing distances of up to 15 m. With a 10 Hz operating frequency, IP40 enclosure, DIN-rail mounting format and an operating temperature range of -20 to +60 °C, it provides dependable photoelectric control for industrial automation and access applications.
Key Advantages
- Single-channel photoelectric amplifier for Carlo Gavazzi MPF through-beam sensing systems.
- 115 V AC ±15% supply for high-voltage industrial control installations.
- Relay switching provides straightforward integration with machine and door control circuits.
- Supports through-beam sensing distances of up to 15 m with compatible sensor heads.
- DIN-rail mounting simplifies installation inside electrical control panels.
- Terminal connections provide convenient field wiring for sensors and control circuits.
- IP40 protection and robust construction suit protected industrial control environments.
Key Features
- Carlo Gavazzi MPF series photoelectric amplifier.
- 1-channel configuration.
- 115 V AC ±15% rated operating voltage.
- Relay output.
- RS high-current output version.
- Relay load capability of 2 A at 240 V AC / 30 V DC for resistive loads.
- 10 Hz operating frequency.
- Compatible with MPF through-beam transmitter and receiver sensor heads.
- Supports sensing systems with distances up to 15 m.
- Terminal connection for electrical wiring.
- DIN-rail mounting for control-panel installation.
- Yellow LED status indication.
- Test input for system testing.
- Transient and reverse-polarity protection.
Reliable Photoelectric Control for Industrial Automation
The MPF1-115RS acts as the control interface between compatible remote through-beam photoelectric sensing heads and an industrial control system. The transmitter creates the optical beam and the receiver monitors its state, while the amplifier processes the sensor signal and operates its relay output when the beam condition changes.
This arrangement allows compact sensor heads to be positioned at the required detection points while the amplifier is installed safely inside a control enclosure. The single-channel MPF1-115RS is particularly suited to industrial doors, gates and machinery where reliable long-range object or obstruction detection is required.
Typical Applications
- Industrial door and gate safety sensing.
- Through-beam obstruction detection systems.
- Conveyor object and product detection.
- Packaging and processing machinery.
- Material handling and automated production equipment.
- Machine presence and position monitoring.
