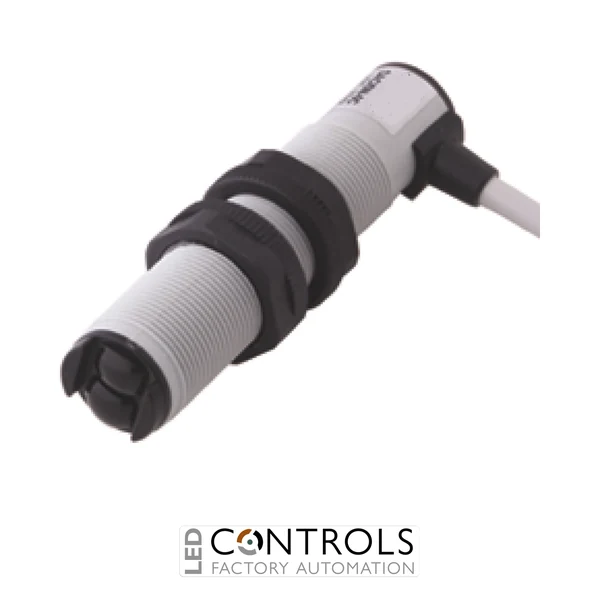

Why Choose the IMO MSR/00-0C M18 Through-Beam Photoelectric Receiver?
The IMO MSR/00-0C is a compact and dependable M18 through-beam photoelectric receiver designed for long-range object and presence detection in industrial automation systems. The sensor uses the proven MS-series M18 photoelectric platform and is intended to operate with a compatible through-beam emitter, providing reliable detection when an object interrupts the optical path between the two sensing devices.
With a sensing range of up to 16 m, the MSR/00-0C is well suited to applications requiring reliable detection across conveyors, machinery, entrances and material handling equipment. Its complementary NPN/PNP output with NO/NC operation provides flexible connection to PLCs and industrial control equipment, allowing the sensor to be incorporated into a wide variety of automation architectures.
The MSR/00-0C operates from a 10–30 V DC supply and features a compact M18 cylindrical plastic housing. This version is supplied with a 2 m cable and 90° cable exit, making it particularly useful where installation depth is restricted or where right-angle cable routing simplifies machine wiring.
Key Advantages
- Long-range through-beam photoelectric receiver for industrial automation.
- Detection range of up to 16 m with a compatible emitter.
- 10–30 V DC supply compatible with common industrial control systems.
- Flexible NPN/PNP switching output.
- Normally open / normally closed operation supports different control requirements.
- Compact M18 cylindrical housing for straightforward machine installation.
- 2 m integral cable with 90° exit supports installations with limited rear clearance.
- Through-beam sensing provides dependable detection without requiring light to reflect from the target.
Key Features
- MS-series M18 photoelectric sensor platform.
- Through-beam receiver.
- 16 m sensing range.
- 10–30 V DC operating voltage.
- NPN/PNP complementary output.
- NO/NC switching functionality.
- Maximum output current of 100 mA.
- M18 cylindrical plastic housing.
- 2 m integral cable.
- 90° cable exit for space-efficient wiring.
- Designed for use with a compatible through-beam photoelectric emitter.
Reliable Long-Range Through-Beam Detection
Through-beam photoelectric sensing uses a separate emitter and receiver positioned opposite one another. The emitter directs a light beam towards the MSR/00-0C receiver, and the control output changes state when an object interrupts that beam. Because detection does not depend on light being reflected from the target, through-beam sensors provide reliable detection across comparatively long distances and can detect objects with a wide variety of colours, surfaces and finishes.
The MSR/00-0C combines a 16 m sensing range with flexible NPN/PNP and NO/NC output options, making it suitable for integration with PLC inputs, machine controllers and other industrial automation equipment. Its M18 format and right-angle cable exit also make it practical for installation in compact machinery where mounting and cable space are limited.
Typical Applications
- Conveyor object and product detection.
- Industrial machinery and automation systems.
- Material handling equipment.
- Packaging and production machinery.
- Entrance and passage detection.
- Presence and position monitoring.
- Long-range detection across machine openings.
- PLC-controlled manufacturing systems.
