Why Choose the Carlo Gavazzi PA12B3T20PC Photoelectric Sensor?

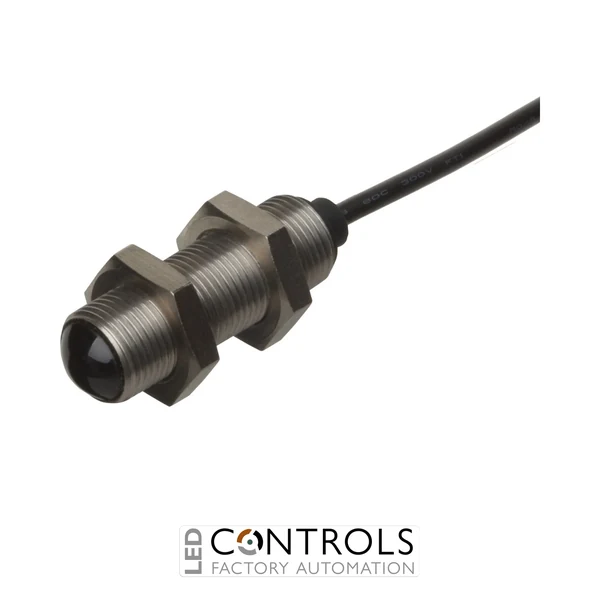

The Carlo Gavazzi PA12B3T20PC is a compact through-beam photoelectric receiver designed for reliable presence and obstruction detection in industrial automation, powered doors and gate systems. Part of the Carlo Gavazzi PA12 Series, this Code 3 receiver operates with a corresponding through-beam transmitter and provides a sensing range of up to 20 m.
The PA12B3T20PC operates from a 10–30 V DC supply and provides a PNP normally closed (NC) output with dark-switching operation. Its compact M12 cylindrical threaded housing enables straightforward mounting in machinery and access equipment, while the integral 5 m cable provides a convenient direct connection to the control system.
With infrared sensing technology, a durable metal housing and IP67 ingress protection, the PA12B3T20PC is designed for dependable service in demanding industrial environments. It is specified as an ESPE Type 2 device and is designed for applications associated with EN 12445, EN 12453, EN 12978 and UL 325.
Key Advantages
- Compact Code 3 through-beam photoelectric receiver.
- Long sensing range of up to 20 m.
- PNP normally closed (NC) output for compatible industrial control systems.
- Dark-switching operation for the required receiver output behaviour.
- Wide 10–30 V DC supply range for industrial automation systems.
- Integral 5 m cable simplifies electrical installation.
- Compact M12 cylindrical threaded housing for straightforward mounting.
- IP67 protection supports operation in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi PA12 Series photoelectric sensor.
- Through-beam receiver, Code 3.
- 20 m maximum sensing range.
- Infrared light sensing technology.
- PNP transistor output.
- Normally closed (NC) output function.
- Dark-switching sensing mode.
- 5 m integral cable.
- Robust metal M12 housing.
- ESPE Type 2 classification.
- IP67 ingress protection.
Reliable Through-Beam Detection for Industrial Automation
Through-beam photoelectric sensing uses separate transmitter and receiver units installed opposite one another. The receiver monitors the infrared beam produced by the matching transmitter, allowing an object or obstruction to be detected when the beam condition changes. This arrangement provides reliable non-contact detection across comparatively long distances.
The Carlo Gavazzi PA12 Series combines through-beam sensing with a compact M12 cylindrical format suited to machinery, powered doors and access equipment. The PA12B3T20PC's PNP normally closed output, Code 3 optical configuration, wide DC supply range and robust IP67 construction support straightforward integration into industrial automation and detection systems.
Typical Applications
- Powered industrial doors and automated gates.
- Machine access and obstruction detection systems.
- Conveyors and material handling equipment.
- Packaging and production machinery.
- Presence and object detection across extended distances.
- Warehouse and logistics automation.
- Industrial automation and control systems.
