Why Choose the Carlo Gavazzi PA18ALD04TCSA Photoelectric Sensor?

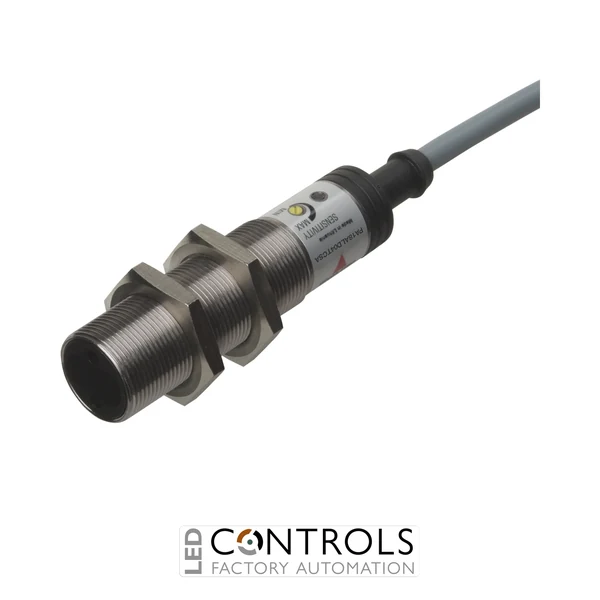

The Carlo Gavazzi PA18ALD04TCSA is a robust M18 diffuse-reflective photoelectric sensor designed for reliable non-contact object detection in industrial automation and machinery applications. As part of the Carlo Gavazzi PA18 series, it combines a durable cylindrical metal housing with infrared sensing technology and a wide-range AC power supply.
This sensor uses 880 nm modulated infrared light and a diffuse-reflective sensing principle, allowing objects to be detected without a separate reflector or receiver. Its adjustable sensing system provides a rated operating distance of 0–400 mm, making it suitable for detecting products, components and materials on automated production equipment.
With a 20–250 V AC power supply, two-wire output and normally closed (NC) switching function, the PA18ALD04TCSA is designed for straightforward integration into industrial control circuits. Its M18 threaded metal housing, 2 m cable connection and IP67 protection rating provide a dependable sensing solution for demanding industrial environments.
Key Advantages
- Reliable diffuse-reflective photoelectric sensing up to 400 mm.
- Wide 20–250 V AC supply range for industrial control applications.
- Durable M18 threaded metal housing suitable for heavy-duty machinery.
- Normally closed two-wire output for AC control circuits.
- Adjustable sensitivity helps optimise detection for different targets and operating conditions.
- IP67 protection provides resistance to dust and water ingress.
- Integral 2 m cable provides a practical hard-wired connection for machinery installations.
Key Features
- Carlo Gavazzi PA18 series photoelectric sensor.
- 0–400 mm rated operating distance.
- 880 nm modulated infrared light.
- 20–250 V AC power supply.
- Two-wire normally closed (NC) output.
- Diffuse-reflective sensing principle.
- Adjustable sensitivity for application-specific detection.
- Dark-switching sensing mode.
- 20 Hz maximum switching frequency.
- 0.5 A maximum operating current.
- 2 m integral cable connection.
- Industrial M18 cylindrical threaded housing.
- Nickel-plated brass housing construction.
- IP67 degree of protection.
Reliable Photoelectric Detection for Industrial Automation
Diffuse-reflective photoelectric sensors detect objects by transmitting light towards a target and monitoring the light reflected back to the receiver. Because the transmitter and receiver are contained within the same sensor housing, no separate reflector is required, helping simplify installation on production machinery, conveyors and automated handling systems.
The Carlo Gavazzi PA18 series is designed for general-purpose industrial sensing where compact construction, reliable switching and straightforward installation are important. The PA18ALD04TCSA combines adjustable sensitivity, modulated infrared light and a rugged M18 metal housing to provide dependable detection across a wide range of factory automation applications.
Typical Applications
- Object detection on industrial conveyor systems.
- Packaging and production machinery.
- Product counting and positioning applications.
- Material handling and automated assembly equipment.
- Detection of containers, components and manufactured parts.
- Factory automation and process equipment.
- OEM machinery and machine-building applications.
