Why Choose the Carlo Gavazzi PA18ALP20TCSA Photoelectric Sensor?

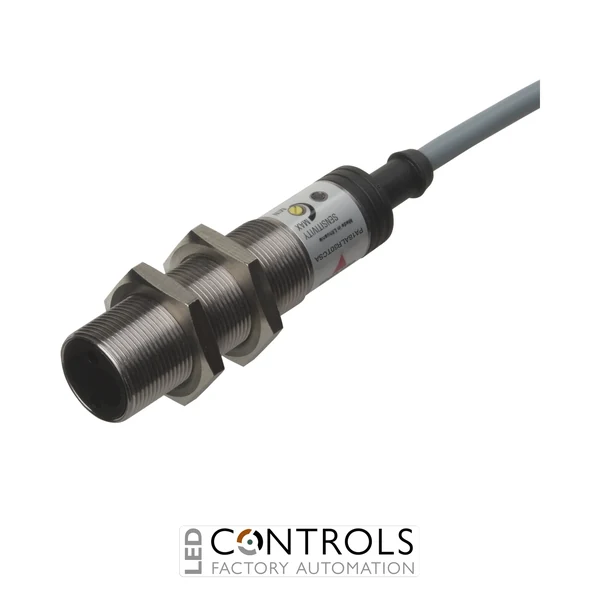

The Carlo Gavazzi PA18ALP20TCSA is a robust polarised retro-reflective photoelectric sensor designed for dependable object detection in industrial automation, material handling and machine control applications. As part of the Carlo Gavazzi PA18 series, it combines reliable optical sensing with a durable M18 threaded metal housing suitable for demanding industrial environments.
This sensor uses polarised red modulated light and a reflector to detect objects passing through its optical path. Polarisation provides improved immunity to reflections from shiny surfaces, while adjustable sensitivity allows the sensor to be configured for the requirements of the application.
With a sensing range of up to 2000 mm, a 20–250 V AC supply, a two-wire normally closed (NC) output and an integral 2 m cable, the PA18ALP20TCSA provides a practical solution for conveyors, packaging machinery and general factory automation.
Key Advantages
- Polarised retro-reflective sensing provides reliable non-contact object detection.
- 2000 mm sensing range supports a wide variety of industrial detection applications.
- 20–250 V AC operating range provides flexible integration into industrial control systems.
- Two-wire normally closed output for straightforward control circuit integration.
- Durable M18 nickel-plated brass housing for heavy-duty industrial use.
- Integral 2 m cable simplifies field wiring and installation.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi PA18 series.
- Polarised retro-reflective sensing principle.
- 2000 mm maximum sensing distance.
- Polarised red modulated light at 660 nm.
- 20–250 V AC supply voltage.
- Two-wire normally closed (NC) output.
- 2 m integral cable connection.
- M18 cylindrical threaded housing.
- Nickel-plated brass construction.
- Adjustable sensitivity for application-specific setup.
- LED output indication for convenient status monitoring.
- IP67 degree of protection.
Reliable Photoelectric Detection for Industrial Automation
Polarised retro-reflective photoelectric sensors transmit light towards a reflector and monitor the returned beam. When an object interrupts the optical path, the sensor changes its switching state, allowing automated machinery to detect products, components and materials without physical contact.
The PA18ALP20TCSA combines this sensing principle with a rugged metal M18 housing, adjustable sensitivity and IP67 protection. Its polarised optical system helps distinguish the intended reflector from unwanted reflections, making it particularly useful where shiny or reflective objects are present.
Typical Applications
- Conveyor object and package detection.
- Packaging and bottling machinery.
- Production and assembly equipment.
- Material handling and logistics systems.
- Product counting and presence detection.
- Industrial machine position monitoring.
