Why Choose the Carlo Gavazzi PA18ALR30TCSA Photoelectric Sensor?
The Carlo Gavazzi PA18ALR30TCSA is a robust retro-reflective photoelectric sensor designed for dependable object detection in industrial automation. Part of the Carlo Gavazzi PA18 Series, it uses a reflector to return the emitted infrared beam and provides a sensing range of up to 3000 mm.
The PA18ALR30TCSA operates from a wide 20–250 V AC supply and features a two-wire normally closed (NC) output. Its modulated 880 nm infrared light, dark-switching operation and adjustable sensitivity provide a practical sensing solution for conveyors, packaging equipment, material handling systems and general industrial machinery.

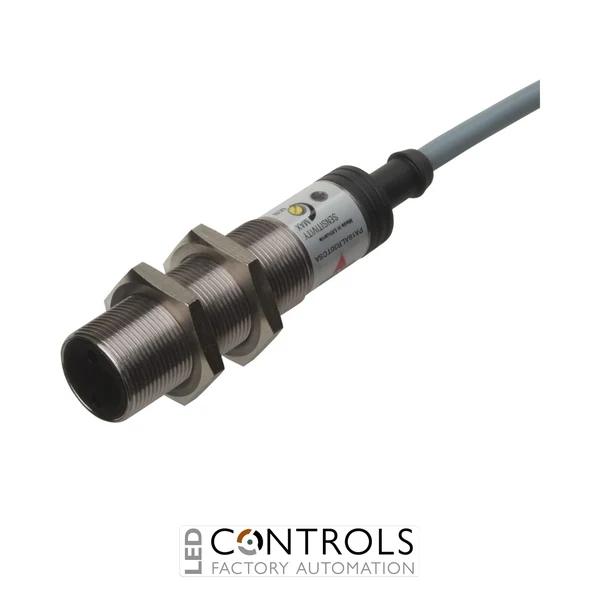

Designed for heavy-duty applications, the sensor uses a long M18 cylindrical threaded metal housing with durable nickel-plated brass construction. This cable-connected version is supplied with an integral 2 m cable, while IP67 ingress protection, LED output indication and high immunity to ambient light support reliable operation in demanding industrial environments.
Key Advantages
- Retro-reflective sensing provides dependable object detection using a separate reflector.
- Long sensing distance of up to 3000 mm.
- Wide 20–250 V AC supply range for compatible industrial control systems.
- Two-wire normally closed (NC) output simplifies installation.
- Adjustable sensitivity allows the sensor to be optimised for the application.
- Heavy-duty M18 nickel-plated brass housing provides robust mechanical protection.
- Integral 2 m cable enables direct electrical connection.
- IP67 protection supports use in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi PA18 Series photoelectric sensor.
- Retro-reflective sensing principle.
- Maximum sensing range of 3 m.
- 880 nm modulated infrared light.
- 20–250 V AC operating supply.
- Two-wire output.
- Normally closed (NC) switching function.
- Dark-switching sensing mode.
- Manual sensitivity adjustment.
- Switching frequency up to 20 Hz.
- Integral 2 m cable.
- M18 cylindrical threaded metal housing.
- LED output indication.
- IP67 ingress protection.
Reliable Retro-Reflective Detection for Industrial Automation
Retro-reflective photoelectric sensing places the emitter and receiver within the same sensor housing and uses a reflector installed on the opposite side of the detection area. An object is detected when it interrupts the returned infrared beam, allowing reliable non-contact detection while requiring electrical wiring on only one side of the application.
The Carlo Gavazzi PA18ALR30TCSA combines this proven sensing principle with a rugged M18 metal body, adjustable sensitivity, wide AC operating voltage and integral cable. Its long sensing range and IP67 construction make it a practical choice for machine builders and automation engineers requiring a durable retro-reflective sensor for general industrial applications.
Typical Applications
- Conveyor object and product detection.
- Packaging and processing machinery.
- Automated assembly equipment.
- Material handling and sorting systems.
- Product counting and position monitoring.
- Warehouse and logistics automation.
- Industrial doors and access equipment.
- General industrial automation and machine control.
