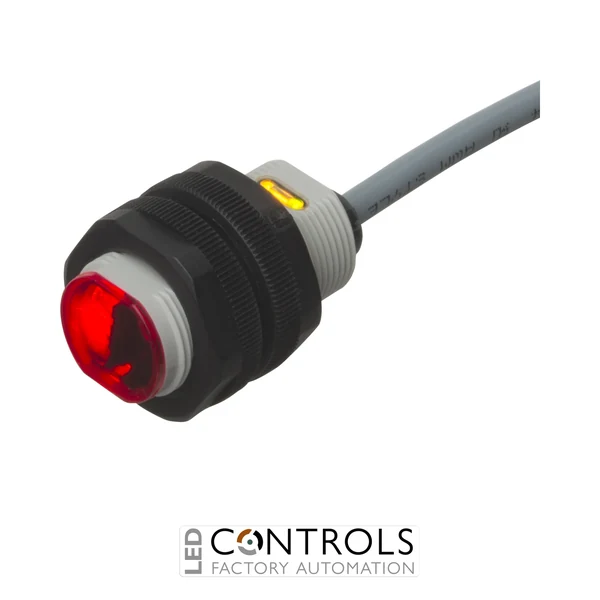

Why Choose the Carlo Gavazzi PA18CAD04PAWS Photoelectric Sensor?
The Carlo Gavazzi PA18CAD04PAWS is a compact and reliable diffuse-reflective photoelectric sensor designed for accurate object detection in industrial automation and machine control applications. As part of the trusted Carlo Gavazzi PA18 series, it combines a rugged M18 cylindrical plastic housing with dependable optical sensing technology for demanding industrial environments.
Featuring a PNP NO + NC output configuration, 0–400 mm sensing range, 625 nm red light source and a 2 m cable connection, the PA18CAD04PAWS provides flexible integration and reliable object detection without requiring a separate reflector.
With IP67 / IP69K protection, adjustable sensitivity and a compact threaded M18 design, the Carlo Gavazzi PA18CAD04PAWS is suitable for packaging machinery, conveyors, material handling systems and general industrial automation applications.
Key Advantages
- Compact M18 diffuse-reflective photoelectric sensor for industrial applications.
- PNP NO + NC outputs provide flexible machine control integration.
- 0–400 mm sensing range suitable for short-distance object detection.
- 625 nm red light technology provides reliable optical detection.
- IP67 / IP69K protection suitable for demanding environments.
- 2 m cable connection simplifies installation.
- Adjustable sensitivity for application flexibility.
Key Features
- Carlo Gavazzi PA18 series photoelectric sensor.
- Diffuse-reflective sensing principle.
- M18 cylindrical threaded barrel housing.
- PNP normally open and normally closed outputs.
- 10–30 V DC supply voltage.
- 2 m pre-wired cable connection.
- Modulated red light 625 nm sensing.
- Light and dark switching operation modes.
Reliable Photoelectric Detection for Industrial Automation
Diffuse-reflective photoelectric sensors detect objects by emitting light towards a target and measuring the reflected signal. This provides a simple and effective sensing solution for automated machinery where compact installation and reliable object presence detection are required.
The Carlo Gavazzi PA18CAD04PAWS combines a durable M18 threaded housing with dual PNP switching outputs, allowing straightforward connection to PLC systems, automation controllers and industrial monitoring equipment.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Assembly and manufacturing equipment.
- Automatic door and access control systems.
- Object presence and position detection.
- OEM industrial automation systems.
