Why Choose the Carlo Gavazzi PA18CLD01TO Photoelectric Sensor?

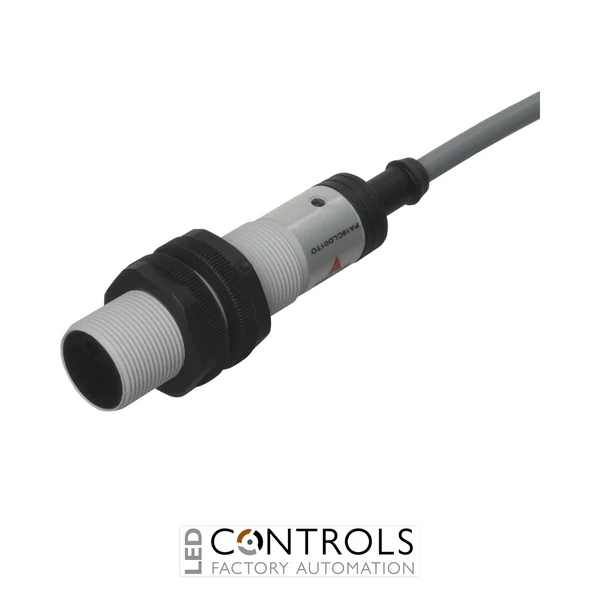

The Carlo Gavazzi PA18CLD01TO is a compact diffuse-reflective photoelectric sensor designed for reliable non-contact object detection in industrial automation, packaging and material handling applications. As part of the Carlo Gavazzi PA18 series, it combines a standard M18 threaded cylindrical housing with straightforward two-wire AC switching.
This sensor uses infrared modulated light at 880 nm to detect objects directly from their reflected light, removing the need for a separate reflector or receiver. Its normally open SCR output and light-switching operation make it suitable for simple industrial detection tasks where dependable presence sensing is required.
With a rated sensing distance of up to 100 mm, a wide 20–250 V AC supply, a 2 m integral cable and IP67 protection, the PA18CLD01TO is a practical choice for machinery, conveyor systems and general factory automation.
Key Advantages
- Diffuse-reflective sensing requires no separate reflector or receiver.
- 100 mm sensing range for short-range industrial object detection.
- 20–250 V AC operating range supports a wide variety of control circuits.
- Two-wire normally open SCR output for straightforward AC load switching.
- Compact M18 threaded cylindrical housing simplifies machine mounting.
- Integral 2 m cable enables direct field wiring.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi PA18 series.
- Diffuse-reflective photoelectric sensing principle.
- 0–100 mm rated operating distance.
- Infrared modulated light at 880 nm.
- 20–250 V AC power supply.
- Two-wire normally open (NO) output.
- SCR switching output.
- Light-switching operation.
- 2 m integral cable.
- M18 threaded plastic housing.
- IP67 degree of protection.
- Designed for simple general-purpose industrial sensing applications.
Reliable Short-Range Object Detection for Industrial Machinery
Diffuse-reflective photoelectric sensors detect objects by transmitting light towards the target and monitoring the light reflected directly back to the receiver. This sensing method allows object presence to be detected without physical contact and without requiring a separate reflector.
The PA18CLD01TO combines simple diffuse sensing with a rugged M18 housing and two-wire AC output, making it particularly suitable for uncomplicated presence detection, counting and positioning duties in industrial machinery and automated production equipment.
Typical Applications
- Short-range object presence detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Component counting and positioning.
- Assembly and manufacturing equipment.
- General industrial automation systems.
