Why Choose the Carlo Gavazzi PA18CLD01TOM6 Photoelectric Sensor?

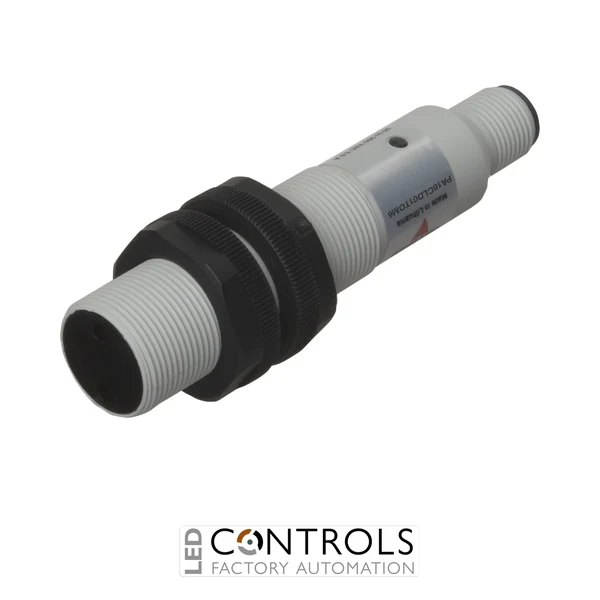

The Carlo Gavazzi PA18CLD01TOM6 is a compact and dependable diffuse-reflective photoelectric sensor designed for non-contact object detection in industrial automation, conveying and machine control applications. As part of the Carlo Gavazzi PA18 series, it combines a standard M18 cylindrical plastic housing with a two-wire AC switching output and convenient plug-in connectivity.
This sensor uses modulated infrared light to detect light reflected directly from the target object, eliminating the need for a separate reflector or receiver. Its fixed 100 mm sensing distance makes it particularly suitable for straightforward short-range presence and position detection where simple, repeatable sensing is required.
With a 20–250 V AC supply, normally open SCR output, M12 4-pin male connector and IP67 protection, the PA18CLD01TOM6 provides a practical solution for packaging machinery, conveyors, assembly equipment and general factory automation.
Key Advantages
- Diffuse-reflective sensing detects targets without requiring a separate reflector.
- 100 mm fixed sensing distance for reliable short-range object detection.
- 20–250 V AC operating range supports integration into a wide range of industrial control circuits.
- Two-wire normally open SCR output provides straightforward AC switching.
- M12 male connector enables convenient installation, servicing and sensor replacement.
- Industrial-standard M18 threaded cylindrical housing supports simple machine mounting.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi PA18 series.
- Diffuse-reflective photoelectric sensing principle.
- 0–100 mm sensing range.
- Modulated infrared light at 880 nm.
- 20–250 V AC supply voltage.
- Two-wire normally open SCR output.
- Supports light-on / dark-on switching.
- 20 Hz maximum switching frequency.
- M12 4-pin male connector.
- M18 PBTP plastic housing.
- LED status indication.
- IP67 degree of protection.
Reliable Short-Range Object Detection for Industrial Machinery
Diffuse-reflective photoelectric sensors transmit light towards the target and monitor the light reflected directly back to the receiver. When sufficient reflected light is detected, the sensor changes its switching state, enabling machinery to identify the presence or position of an object without mechanical contact.
The PA18CLD01TOM6 combines fixed-range diffuse sensing with a robust M18 housing, wide AC supply range and detachable M12 connection. Its simple sensing arrangement and industrial construction make it well suited to general-purpose automation tasks where uncomplicated and dependable object detection is required.
Typical Applications
- Short-range object presence detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Component counting and positioning.
- Assembly and manufacturing equipment.
- Machine automation and control systems.
