Why Choose the Carlo Gavazzi PA18CLD04TCM6 Photoelectric Sensor?

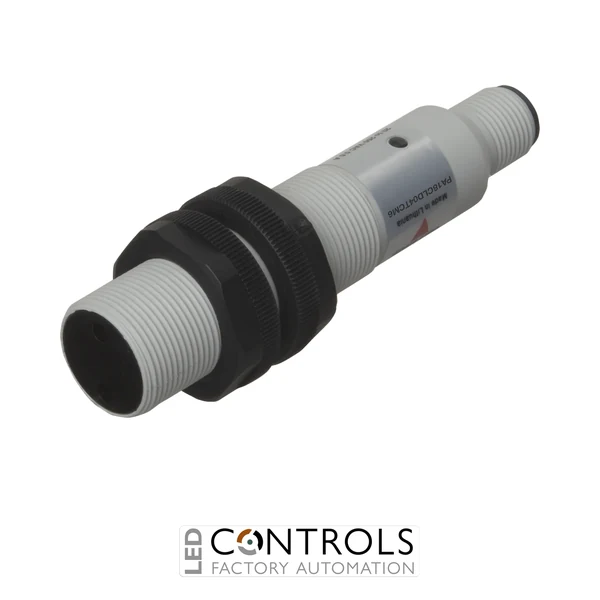

The Carlo Gavazzi PA18CLD04TCM6 is a compact and reliable diffuse-reflective photoelectric sensor designed for non-contact object detection in industrial machinery and automation systems. As part of the Carlo Gavazzi PA18 series, it combines an industry-standard M18 cylindrical plastic housing with integrated electronics for straightforward installation and dependable sensing.
This sensor uses 880 nm modulated infrared light to detect objects directly from reflected light, eliminating the need for a separate reflector or receiver. Its two-wire normally closed SCR output is designed for AC control circuits, while LED indication, transient protection and high immunity to ambient light support reliable operation in industrial environments.
With a fixed sensing distance of up to 400 mm, a 20–250 V AC supply and a 4-pin M12 male connector, the PA18CLD04TCM6 provides a practical plug-connected sensing solution for presence detection, position monitoring, counting and general machine automation.
Key Advantages
- Compact M18 diffuse-reflective photoelectric sensor for industrial object detection.
- Fixed sensing distance of up to 400 mm.
- Wide 20–250 V AC supply range for industrial control circuits.
- Two-wire normally closed SCR output for straightforward switching.
- 4-pin M12 male connector enables convenient plug-in installation and replacement.
- IP67 protection provides resistance to dust and temporary water immersion.
Key Features
- Carlo Gavazzi PA18 series.
- Diffuse-reflective sensing principle.
- 0–400 mm fixed sensing range.
- 880 nm modulated infrared light source.
- SCR normally closed output.
- 20–250 V AC supply voltage.
- Maximum operating current of 0.5 A.
- Maximum switching frequency of 20 Hz.
- M18 cylindrical PBTP housing.
- 4-pin M12 male connector.
- LED indication and transient protection.
- IP67 degree of protection.
Reliable Photoelectric Detection for Industrial Automation
Diffuse-reflective photoelectric sensors transmit light towards a target and detect the light reflected back from its surface. Because the transmitter and receiver are contained within the same sensor housing, the PA18CLD04TCM6 provides a convenient single-device solution for detecting products and machine components without requiring a separate reflector.
The PA18 series is designed for general-purpose industrial sensing applications where compact dimensions, simple installation and dependable operation are important. The PA18CLD04TCM6 combines modulated infrared sensing, an AC two-wire SCR output and an M12 plug connection to simplify integration and replacement within automated machinery.
Typical Applications
- Object presence and position detection.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Component counting and product detection.
- Machine sequencing and automation control.
- General industrial sensing applications.
