Why Choose the Carlo Gavazzi PA18CLD04TCSA Photoelectric Sensor?

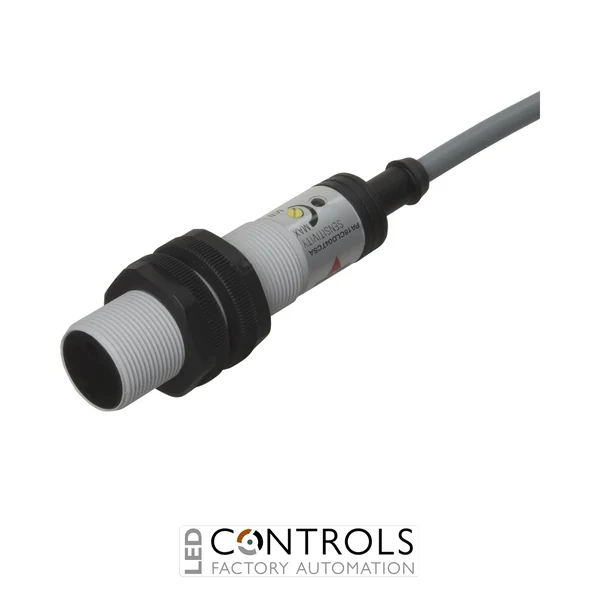

The Carlo Gavazzi PA18CLD04TCSA is a robust M18 diffuse-reflective photoelectric sensor designed for reliable object detection in industrial automation and machine control applications. As part of the Carlo Gavazzi PA18 photoelectric sensor series, it combines a compact threaded barrel housing, infrared modulated light sensing and SCR normally closed output switching for dependable operation in demanding industrial environments.
This diffuse-reflective sensor detects objects by measuring reflected infrared light from the target, providing non-contact sensing with a 400 mm operating distance. The adjustable sensitivity, M18 cylindrical design, 2 m cable connection and IP67 protection rating make it suitable for industrial machinery, production lines and automation equipment requiring reliable sensing performance.
The PA18CLD04TCSA features a two-wire SCR normally closed output, infrared modulated light source at 880 nm, 20–250 V AC supply range and cable connection. It is designed for applications requiring simple integration, durable construction and dependable object detection.
Key Advantages
- Reliable M18 diffuse-reflective photoelectric sensor for industrial automation.
- 400 mm sensing range provides accurate short-distance object detection.
- Two-wire SCR normally closed output simplifies AC control integration.
- Infrared modulated light technology provides stable detection performance.
- IP67 protection rating supports operation in demanding industrial environments.
- Compact M18 cylindrical threaded housing enables straightforward machine installation.
Key Features
- Carlo Gavazzi PA18 photoelectric sensor series.
- Diffuse-reflective sensing principle.
- 400 mm rated operating distance.
- Infrared modulated light source, 880 nm.
- Two-wire SCR output.
- Normally Closed (NC) switching function.
- M18 cylindrical threaded housing.
- 2 m cable connection.
- 20–250 V AC operating supply.
- Adjustable sensitivity for detection optimisation.
Reliable Detection for Industrial Automation
Photoelectric sensors such as the Carlo Gavazzi PA18CLD04TCSA provide accurate non-contact object detection by emitting infrared light towards an object and measuring the reflected signal. When an object enters the sensing field, the sensor changes its output state to provide reliable machine control feedback.
The PA18 series is designed for automation engineers and machine builders requiring compact sensing devices with reliable switching performance, simple installation and robust environmental protection. Its M18 housing, adjustable sensing capability and IP67 rating support use in a wide range of industrial applications.
Typical Applications
- Industrial automation and machine monitoring.
- Object detection on production lines.
- Packaging and assembly machinery.
- Material handling systems.
- Product presence and position detection.
- Industrial control and automation equipment.
